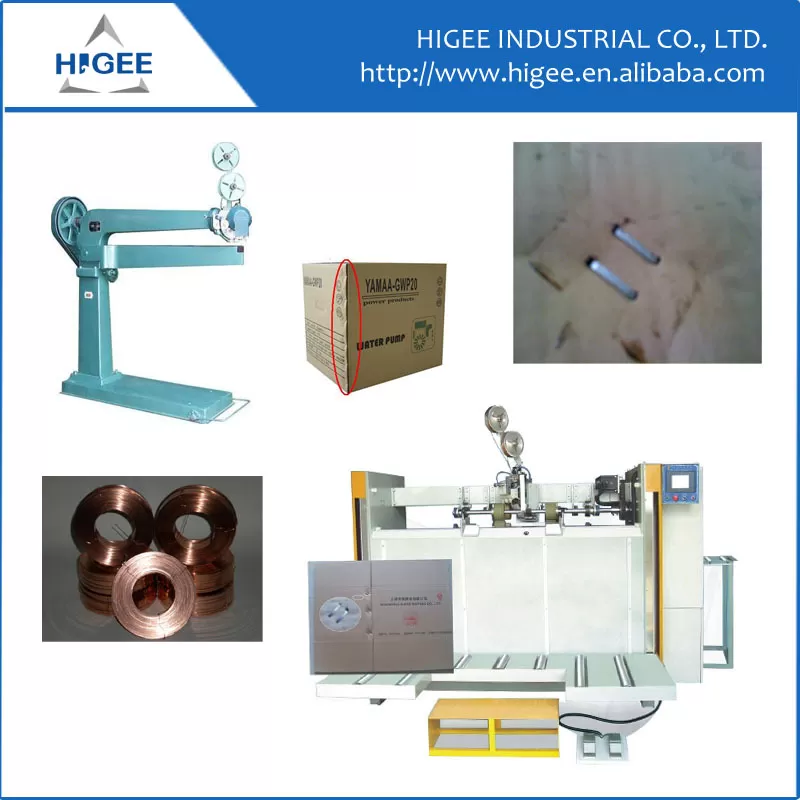

Introduction:Carton stitching corrugated stapler machine
Features:
1. One minute quick order change
2. Easy operation, no training is necessary.
3. Single, double supplement stitching is available.
4. Automatic counter ejector.
5. The man-machine surface control.
6. Increase the motor break clown.Give nail wire plate strand warning.Carton Specification: applied area.
General features
l The machine is applicable for stapling various corrugated paper carton
Main specifications
Modal | X-900(36“) | X-1200(48”) | X-1400(55”) |
Size of carton(mm) | 900*1000*1000 | 1200*1000*1000 | 1400*1000*1000 |
Type of staple(degree) | 16#—17# double-nail | 16#—17# double-nail | 16#—17# double-nail |
Flat silk size(wide*thick) | 2.25*0.72mm | 2.25*0.72mm | 2.25*0.72mm |
Nail feet size | 14*11.5mm | 14*11.5mm | 14*11.5mm |
Mechanical speed | 260nails/min | 260nails/min | 260nails/min |
Power | 0.37KW | 0.37KW | 0.37KW |
Outer dimension(L*W*H) | 1400*550*1650 | 1600*550*1900 | 1600*550*1900 |
Weight | 300kg | 500kg | 550kg |
