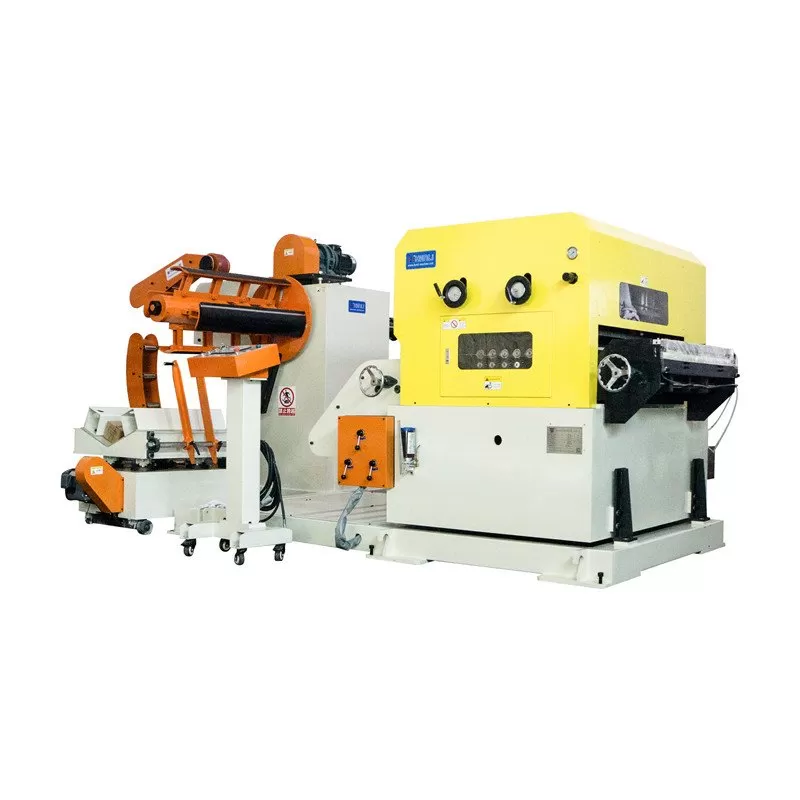

NCHL-D Compact Servo Straightener Feeder

NCHL-D Compact Servo Straightener Feeder for 1.0 – 8.0 mm sheet

Material: Cold rolled sheet, hot rolled sheet, pickled sheet, galvanized sheet, stainless steel sheet, copper, aluminum

Material Thickness：1.0 ～ 8.0 mm  Note: Please refer to the correction ability table for thickness x width.

Material Width：100 ～ 1800 mm

Yield Strength ：≤385 N/mm2

Coil Inner Diameter:Φ450~φ530mm/φ480~φ530mm/φ580~φ630mm

Coil Outside Diameter:max φ 1600 mm

Coil Weight:3000~15000kg

Standard accessory:
1.Electric eye loop control system
2.Outgoing catenary to assist and support the material
3.Hold down arms device
4.Hold up arm for sheet feeding in
5.Feeding line easily adjusts by advance worm gear screw jacks device
6.Leveling setting wheel with meter panel
7.The uncoiler contain the butterfly brakes air compressor
8.Uncoiler-inverter device
9.Feed and staightener rolls with a hard chrome finished
10.Up and down device for feeding in sheet loop
11.Coil tip flattness device
12.Coil holding arms
