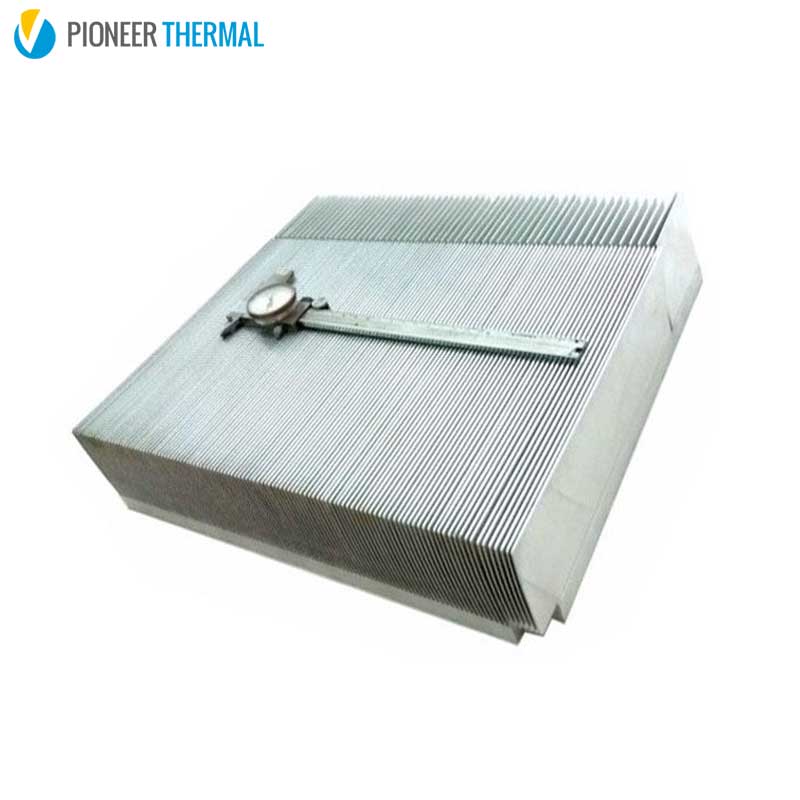

Power System Skiving Heatsink

Introduction:Power System Skiving Heatsink

Product Introduction

Skiving heatsink design:

1. Skiving heatsink Airflow lengths limited by cutter, maximum heat dissipation under forced convection (with high airflow)

2. Skiving heatsink can be designed very thin fins and very high with high density

3. Skiving heatsink material can be Aluminum and Copper.

4. Aluminum skiving heatsink with high aspect ratios( up to 50)

5.Skiving heat sink without filler material.

Technical Parameters

Place of Origin:	Dongguan, China (Mainland)	OEM:	Yes
Process:	Skiving fin	Temper:	T3-T8
Material:	Aluminum	Shape:	Square
Packing:	Paper carton, EPE, wooden pallet	Brand Name:	PIONNER THERMAL
Application:	Power System	Certificate:	ISO 9001:2015,ISO 14001:2015
Model Number:	PT049	Tolerance:	0.05 mm
Finish:	Silver anodizing	Fin thickness:	0.25 --2 mm
Extra process:	CNC Machining	Size:	350x320x70mm
AL1060 / AL 6063/ CU1100 Process parameter: Base thickness: 1~30 mm Fin length: <550 mm Fin height: <120 mm Fin thickness: 0.25~2.0 mm Fin gap: 0.2~6.5 mm Product length: 3000 mm

Video

Our Customers

Our most of products are customized and widely applied in IPC,server,telecom & communications infrastructure &power,LED lighting,medical equipment and other products.

Shipping Methods

Any Power System Skiving Heatsink services, please contact Pioneer Thermal. We'll reply you within 12 hours.

Help your design design team to improve the part for manufacture.(design refine/process optimize/cost reasonable)
