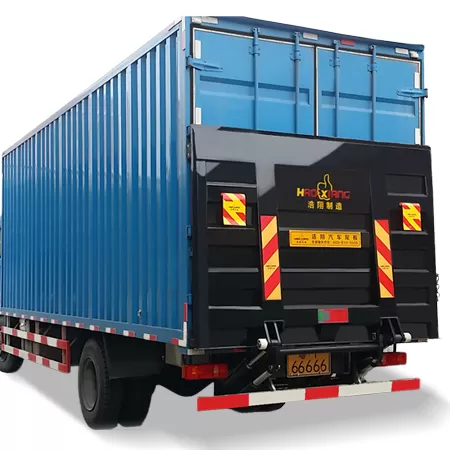

Truck tail lift

Introduction:Truck tail lift for loading and unloading/tailgate lift platform

Truck tail lift for loading and unloading/tailgate lift platform

Model	Ratedload (kg)	Motor Power (kw)	Panel size (mm)	Motor	Bracket arm length (mm)	Inner width of the bracket (mm)	Applicable height (mm)	Average lifting speed (mm/s)	Oil selection	Table working inclination angle
HX-QWB1.5	1500	12V2.0 24V2.5	1800*1800	DC12V-24V/100AH-160AH	745	880	700-1550	60-80 (Adjustable speed)	46# Anti-wear hydraulic oil	5°-9°
			1900*1800
			2000*1800
			2100*1800
HX-QWB2.0	2000		2200*1800		808	995
			2300*1800
			2400*1800
			2500*1810
