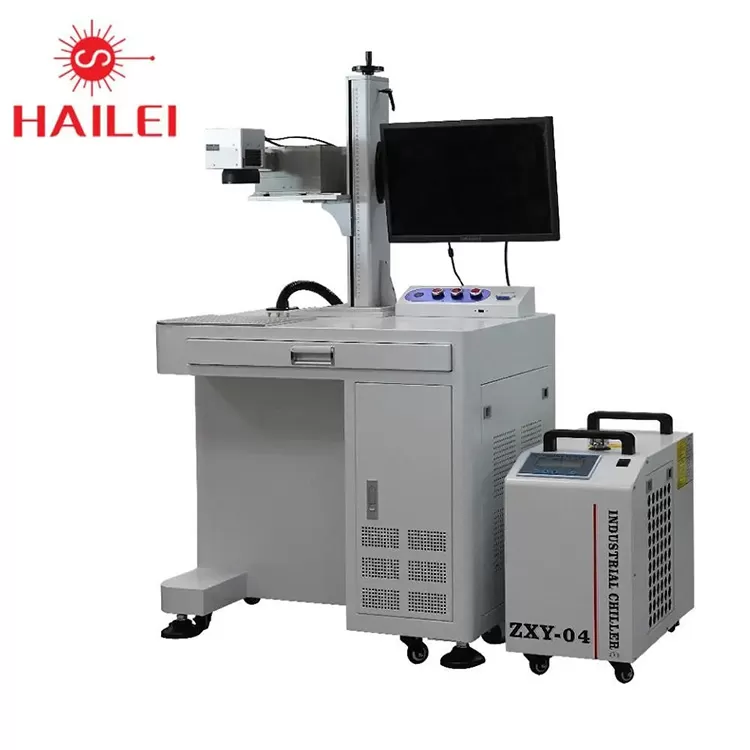

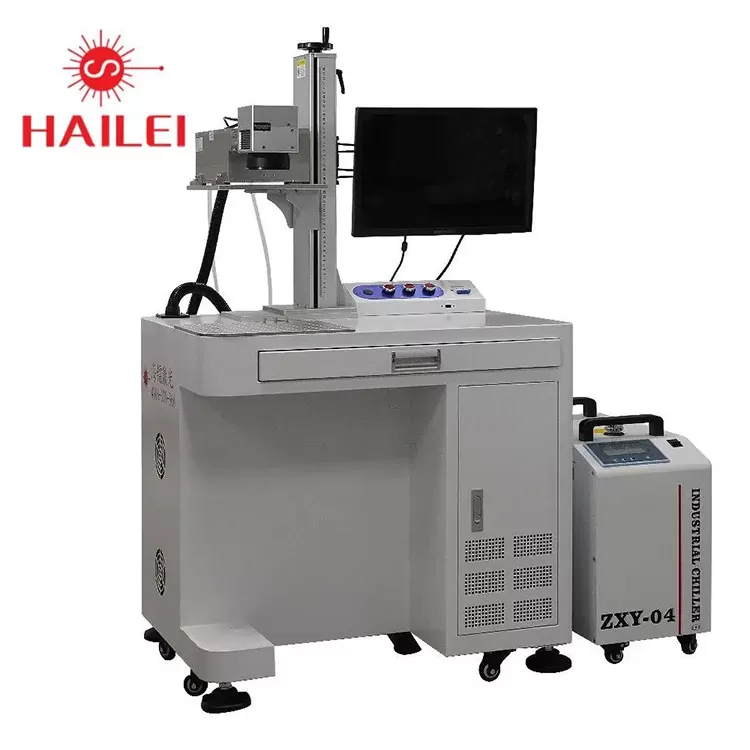

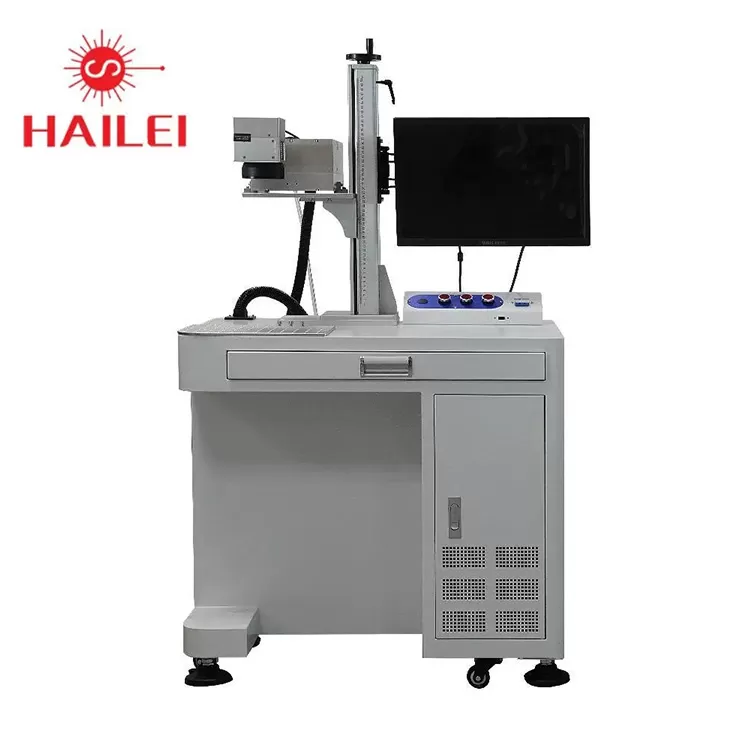

Laser Marking Printing Machine

Introduction:Laser Marking Printing Machine

Product Parameters:

Max output power	3W	5W	10W	15W
Laser wavelength	355nm	355nm	355nm	355nm
Q-switching frequency	0-100KHz	20-80KHz	20-80KHz	20-80KHz
Output beam quality	1.1 M2	1.1 M2	1.3 M2	1.3 M2
Smallest character of Marking	0.1mm	0.005mm	0.005mm	0.005mm
Minimum line width of Marking	0.01mm	30%	30%	30%
Speed of Marking	400 characters/second	400 characters/second	500 characters/second	500 characters/second
Repeated Marking accuracy	0.001mm	0.001mm	0.001mm	0.001mm
Marking Area	110mm+110mm or 180mm*180mm	110mm+110mm or 180mm*180mm	110mm+110mm or 180mm*180mm	110mm+110mm or 180mm*180mm
Cooling	Air or water	Air or water	Air or water	Air or water
Power supply	220V 50HZ 10A 1.2KW	220V 50HZ 10A 1.2KW	220V 50HZ 10A 2KW	220V 50HZ 10A 2KW
Dementions	900mm680mm1200mm	900mm680mm1200mm	900mm680mm1200mm	900mm680mm1200mm

After-sale service

(1).Warranty policy: If the machine is broken within 1 year, we will send the spare parts to the client for free, and it is 2 years for important parts.
(2).Training:
a.the buyer of the relevant personnel training is free of charge in China. The training Contents include the normal use of equipment, maintenance, failure analysis and elimination, safe operation and emergency handling procedures, etc
b.If customer needs our technician give the onsite training, the customer should response for Visa, Flight, Local transportation and accommodation.
c. Live Video training is available.
(3).Packing and Contents:
Machine will be packed into the standard wooden cartons, suitable for vessel or air transport, and marked the
universal label, shipping marks etc.
