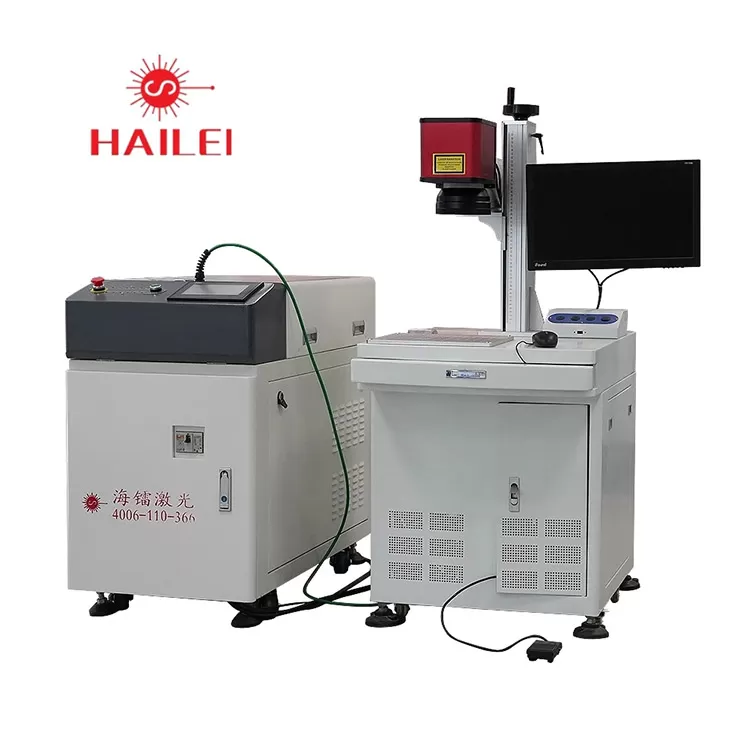

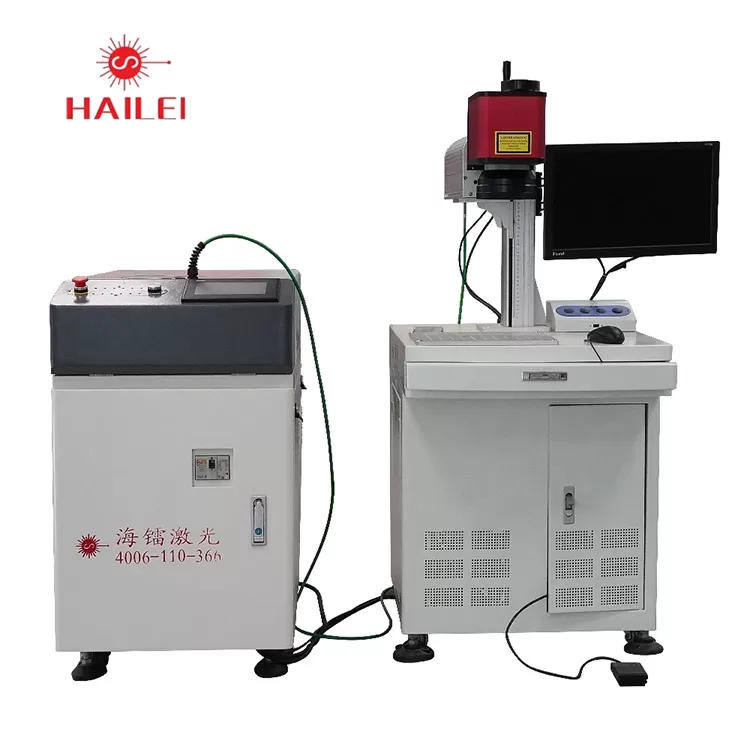

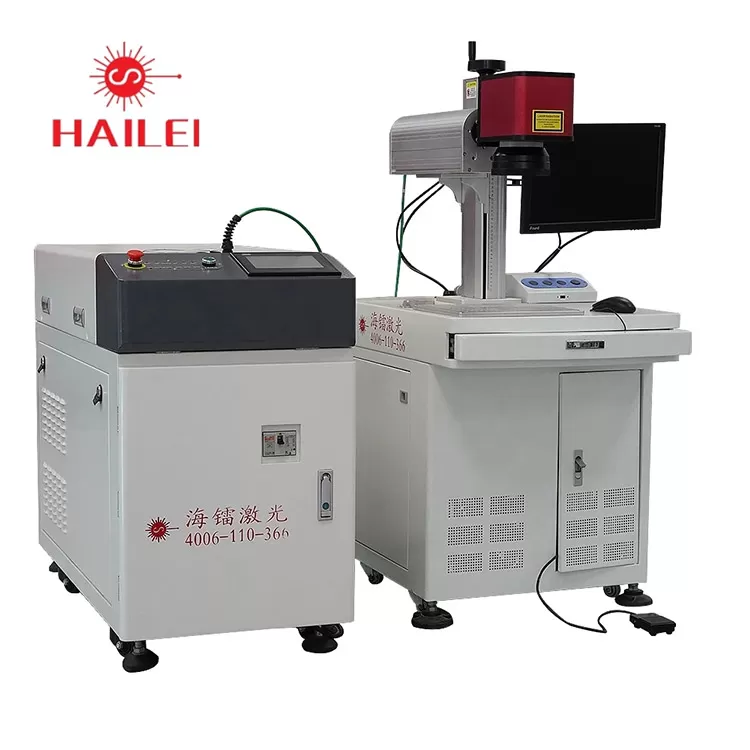

Fiber Laser Welding Machine

Product Description

DEVICE MODEL	HL-ZJ-300W
MAX LASER POWER	300W
LASER WAVE LENGTH	1064nm
MAX SINGLE PULSE ENERGY	100J
WELDING PULSE FREQUENCY	1-100HZ,1-300HZ, 1-500HZ
PULSE WIDTH	0.1-20ms
MAX. DEPTH OF WELDING (SINGLE PULSE)	0.1-0.7mm
CORE DIAMETER OF FIBER	0.6mm
MULTI FIBER OUTPUT	≤ 4 Lane
LIGHT SPLIT METHOD	BY TIME OR ENERGY
FEEDBACK METHOD	CURRENT OR ENERGY
OBSERVATION  SYSTEM	CCD
POWER SUPPLY	3 PHASE  AC380V, 50HZ
RATED POWER	≤8KW
COOLING SYSTEM	WATER COOL
WORKBENCH	200mm*200mm-1200mm*1200mm

After-sale service

(1).Warranty policy: If the machine is broken within 1 year, we will send the spare parts to the client for free, and it is 2 years for important parts.
(2).Training:
a.the buyer of the relevant personnel training is free of charge in China.  The training Contents include the normal use of equipment, maintenance, failure analysis and elimination, safe operation and emergency handling procedures, etc
b.If customer needs our technician give the onsite training, the customer should response for Visa, Flight, Local transportation and accommodation.
c. Live Video training is available.
(3).Packing and Contents:
 Machine will be packed into the standard wooden cartons, suitable for vessel or air transport, and marked the
universal label, shipping marks etc.
