Servo Double Action Deep Drawing Hydraulic Press

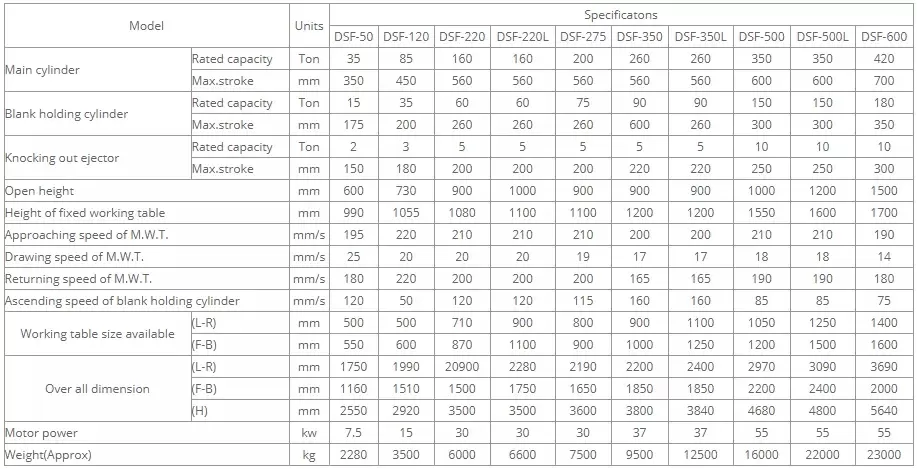

Specification:

1. Advanced two way cartridge valve system ensures high reliability and much less hydraulic shock direction change;

2. Main hydraulic cylinder is made of alloy cast steel and it’s inner surface is finely grinded for life under high pressure;

3. Four columns are made of alloy steel with high tensile resistance and finely grinded and electro-plated with hard chrome;

4. Key hydraulic and electric units adopted are famous brands from Germany USA and Japan;

5. Fast approaching speed of movable working table creates higher production efficiency;

6. A hydraulic ejector is installed on movable working table for knocking out work piece after drawing.

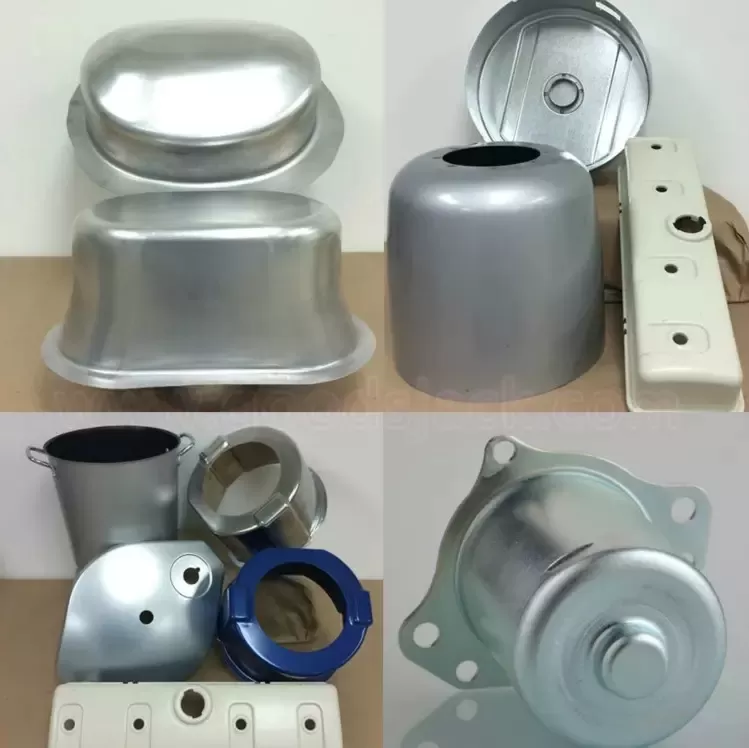

Application:

Our service

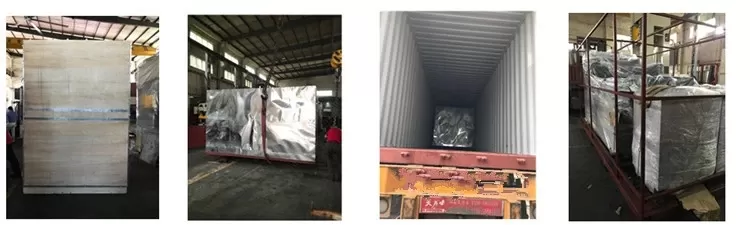

Packing & Shipping

FAQ

-Q:How about your machine quality?

-A: Goodsjack is a mature brand in China since 1997, have cooperated with many famous brand.

-Q:Do you accept OEM service?

-A: Yes, most our machines are OEM. All machine specifications can be set as your request.

-Q:If we have doubts when choose machine model, can you give us suggestion?

-A: Yes, if you have doubts when choose machine, please just supply your products details, we will give you professional suggestion!

-Q:How to make an offer?

-A: First you told us what's process and machine style you want. And after get machine tonnage, stroke, working table size and other special request, we will make a offer within 24 hours.
