Introduction:Frame Guide Rail Deep Drawing Press Hydraulic 35- 500 Ton Capacity; Applicable to tableware,kitchenware,lighting radiators and other metal products,deep drawing molding.
Product Description
Machine specifications:
| Model | Units | Specifications | ||||||||||||
| DKFS-50 | DKFS-75 | DKFS-120 | DKFS-150 | DKFS-220 | DKFS-220L | DKFS-275 | DKFS-350 | DKFS-350L | DKFS-500 | DKFS-500L | DKFS-600 | |||
| master cylinder | rated capacity | ton | 35 | 50 | 85 | 100 | 160 | 160 | 200 | 260 | 260 | 350 | 350 | 420 |
| stroke | mm | 350 | 450 | 450 | 560 | 560 | 560 | 560 | 560 | 560 | 600 | 600 | 700 | |
| fast down speed | mm/s | 210 | 220 | 220 | 220 | 230 | 230 | 220 | 190 | 190 | 230 | 230 | 210 | |
| coining speed | mm/s | 20-40 | 20-40 | 20-40 | 21 | 20-40 | 22-40 | 20-40 | 15-30 | 15-30 | 15-30 | 15-30 | 14-28 | |
| return speed | mm/s | 190 | 220 | 220 | 180 | 220 | 220 | 210 | 165 | 165 | 170 | 170 | 190 | |
| system pressure | bar | 220 | 220 | 220 | 240 | 240 | 240 | 240 | 230 | 230 | 240 | 240 | 230 | |
| cylinder pressure side | blank holder force | ton | 15 | 25 | 35 | 50 | 60 | 60 | 75 | 90 | 90 | 150 | 150 | 180 |
| stroke | mm | 175 | 200 | 200 | 260 | 260 | 260 | 260 | 260 | 260 | 300 | 300 | 350 | |
| unloading cylinder | ejecting force | ton | 2 | 3 | 5 | 5 | 5 | 5 | 5 | 10 | 10 | 10 | 10 | 10 |
| stroke | mm | 150 | 180 | 180 | 200 | 200 | 200 | 200 | 220 | 220 | 250 | 250 | 300 | |
| open height (slide to bolster) | mm | 600 | 730 | 730 | 750 | 900 | 1000 | 900 | 900 | 900 | 1000 | 1200 | 1500 | |
| working table size | L-R | mm | 500 | 500 | 600 | 600 | 710 | 900 | 800 | 900 | 1100 | 1050 | 1250 | 1400 |
| F-B | mm | 550 | 600 | 600 | 800 | 870 | 1100 | 900 | 1000 | 1250 | 1200 | 1500 | 1600 | |
| bolster height | mm | 850 | 950 | 1000 | 1000 | 1080 | 1100 | 1100 | 1150 | 1150 | 1350 | 1350 | 1500 | |
| main motor power | KW | 8.6 | 8.6 | 16 | 24 | 35 | 35 | 35 | 37 | 37 | 55 | 55 | 55 | |
| over all dimension | L-R | mm | 1350 | 1400 | 1420 | 1430 | 1750 | 1900 | 1800 | 3020 | 3250 | 3310 | 3510 | 3700 |
| F-B | mm | 1530 | 1580 | 1680 | 1880 | 2200 | 2530 | 2250 | 2200 | 2200 | 2200 | 2200 | 2300 | |
| H | mm | 2680 | 3080 | 3100 | 3120 | 3805 | 3955 | 3830 | 3980 | 3980 | 4360 | 4660 | 5150 | |
Remarks: Final specifications are subject to contract or agreement.
Major features:
1). Energy saving and emission reduction: Hydraulic and electronic control adopt intelligent servo-saving system, saving 50-70%
2). Safety & Precision: Each machine is equipped with an infrared safety grating, which effectively protects the safety of the operator. The servo intelligent patented control system ensures that the machine’s repeat position accuracy is up to ± 0.03mm and the pressure precision is ± 1 bar.
3). Low failure rate: Servo intelligent patent control system, do not useless work, the oil temperature is not easy to increase, and there is no negative pressure in the oil system, a greater reduction of failure, prolong the service life of hydraulic components, electrical appliances with automatic fault alarm function and one-button reset function.
4). Stable & Durable: The frame adopts the frame structure of the whole machine, and the slider adopts precision guide rails to run. It is resistant to shock and side pressure, and the whole machine is stable, precise and durable. It is suitable for blanking, forming, extrusion and other process uses.
5). Easy Maintenance: The whole machine according to different functional modes, designed into a modular structure, easy disassembly, general fault can be viewed directly through the touch screen, easy maintenance.

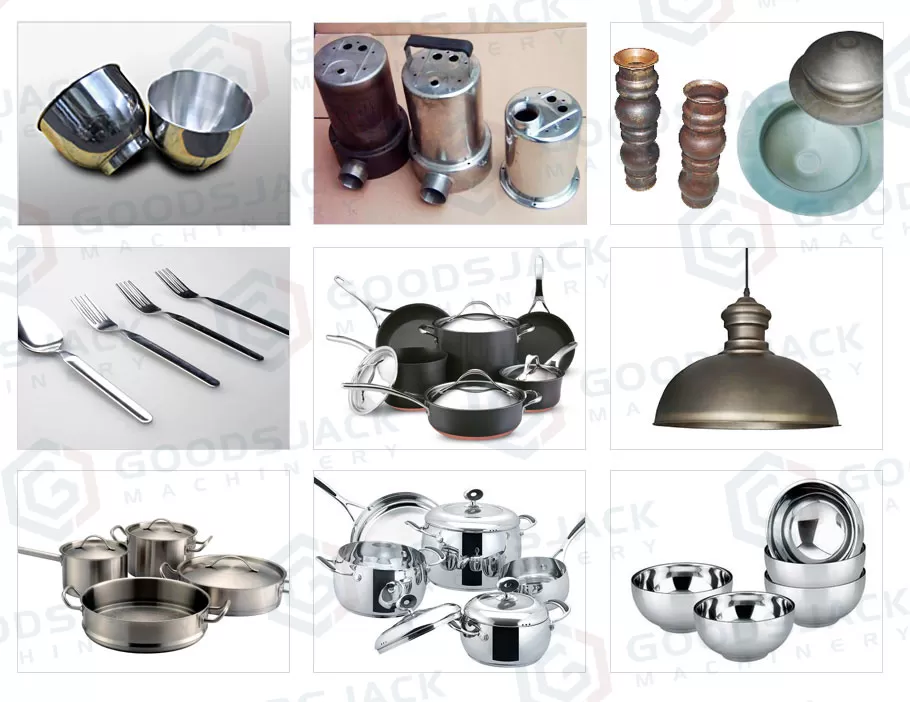

Application:
Our service
Accessories
Packaging & Shipping
Company Information
Dongguan Delishi Machinery Technology Co., Ltd. established in 1997, is located in Dongguan, a famous international manufacturing city. It is a professional manufacturer of servo-controlled hydraulic presses, including R&D, production and sales.
The company has more than 20 years of experience in hydraulic press manufacturing and has strong technical team. In 2009, the company was identified as "Dongguan Private Technology Enterprise" and in 2014 it was awarded as "High-tech Enterprise". The project "Intelligent Servo Electro hydraulic Compound Press" independently developed by the company has won the National and Dongguan Innovation Fund Awards. Other projects have also obtained a number of national invention patents and practical patent certifications. The company is leading hydraulic machine in Guangdong and China.
FAQ
-Q:How about your machine quality?
-A: Goodsjack/Delishi is a mature brand in China since 1997, have cooperated with many famous brand.
-Q:Do you accept OEM service?
-A: Yes, most our machines are OEM. All machine specifications can be set as your request.
-Q:If we have doubts when choose machine model, can you give us suggestion?
-A: Yes, if you have doubts when choose machine, please just supply your products details, we will give you professional suggestion.
-Q:How to make an offer?
-A: First you told us what's process and machine style you want. And after get machine tonnage, stroke, working table size and other special request, we will make a offer within 24 hours.
