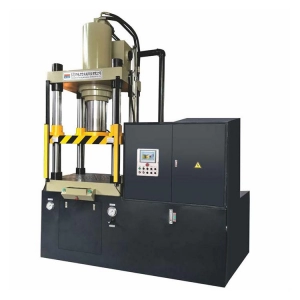

Introduction:Four Column Servo Deep Hydraulic Press Machine
Delishi Deep Drawing Hydraulic Press Machine, With 25 years extensive experience in stamping industry, DELISHI has developed a specially designed high-speed precision-control stamping press to serve the stamping world across the globe.

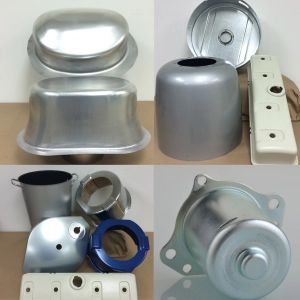

1. Deep drawing and forming of tableware, kitchenware, metal cover of electric motor, household appliances and lighting ware etc.
2. Main hydraulic cylinder is made of alloy cast steel and it’s inner surface is finely grinded for prolonging working life under high pressure.
| Model | Units | Specificatons | ||||||||||
| DSFS-50 | DSFS-120 | DSFS-220 | DSFS-220L | DSFS-275 | DSFS-350 | DSFS-350L | DSFS-500 | DSFS-500L | DSFS-600 | |||
| Main cylinder | Rated capacity | Ton | 35 | 85 | 160 | 160 | 200 | 260 | 260 | 350 | 350 | 420 |
| Max.stroke | mm | 350 | 450 | 560 | 560 | 560 | 560 | 560 | 600 | 600 | 700 | |
| Blank holding cylinder | Rated capacity | Ton | 15 | 35 | 60 | 60 | 75 | 90 | 90 | 150 | 150 | 180 |
| Max.stroke | mm | 175 | 200 | 260 | 260 | 260 | 600 | 260 | 300 | 300 | 350 | |
| Knocking out ejector | Rated capacity | Ton | 2 | 3 | 5 | 5 | 5 | 5 | 5 | 10 | 10 | 10 |
| Max.stroke | mm | 150 | 180 | 200 | 200 | 200 | 220 | 220 | 250 | 250 | 300 | |
| Open height | mm | 600 | 730 | 900 | 1000 | 900 | 900 | 900 | 1000 | 1200 | 1500 | |
| Height of fixed working table | mm | 990 | 1055 | 1080 | 1100 | 1100 | 1200 | 1200 | 1550 | 1600 | 1700 | |
| Approaching speed of M.W.T. | mm/s | 195 | 220 | 210 | 210 | 210 | 200 | 200 | 210 | 210 | 190 | |
| Drawing speed of M.W.T. | mm/s | 25 | 20 | 20 | 20 | 19 | 17 | 17 | 18 | 18 | 14 | |
| Returning speed of M.W.T. | mm/s | 180 | 220 | 200 | 200 | 200 | 165 | 165 | 190 | 190 | 180 | |
| Ascending speed of blank holding cylinder | mm/s | 120 | 50 | 120 | 120 | 115 | 160 | 160 | 85 | 85 | 75 | |
| Working table size available | (L-R) | mm | 500 | 500 | 710 | 900 | 800 | 900 | 1100 | 1050 | 1250 | 1400 |
| (F-B) | mm | 550 | 600 | 870 | 1100 | 900 | 1000 | 1250 | 1200 | 1500 | 1600 | |
| Overa ll dimension | (L-R) | mm | 1750 | 1990 | 20900 | 2280 | 2190 | 2200 | 2400 | 2970 | 3090 | 3690 |
| (F-B) | mm | 1160 | 1510 | 1500 | 1750 | 1650 | 1850 | 1850 | 2200 | 2400 | 2000 | |
| (H) | mm | 2550 | 2920 | 3500 | 3500 | 3600 | 3800 | 3840 | 4680 | 4800 | 5640 | |
| Motor power | kw | 7.5 | 15 | 30 | 30 | 30 | 37 | 37 | 55 | 55 | 55 | |
| Weight(Approx) | kg | 2280 | 3500 | 6000 | 6600 | 7500 | 9500 | 12500 | 16000 | 22000 | 23000 | |
Remarks:Final specifications are subject to contact or agreement.
The above parameters are for reference, ordering the contract shall prevail.
1. Advanced two way cartridge valve system ensures high reliability and much less hydraulic shock direction change;
2. Main hydraulic cylinder is made of alloy cast steel and it’s inner surface is finely grinded for life under high pressure;
3. Four columns are made of alloy steel with high tensile resistance and finely grinded and electro-plated with hard chrome;
4. Key hydraulic and electric units adopted are famous brands from Germany USA and Japan;
5. Fast approaching speed of movable working table creates higher production efficiency;
6. A hydraulic ejector is installed on movable working table for knocking out workpiece after drawing.
7. Use servo control system to save energy 50-70%.
