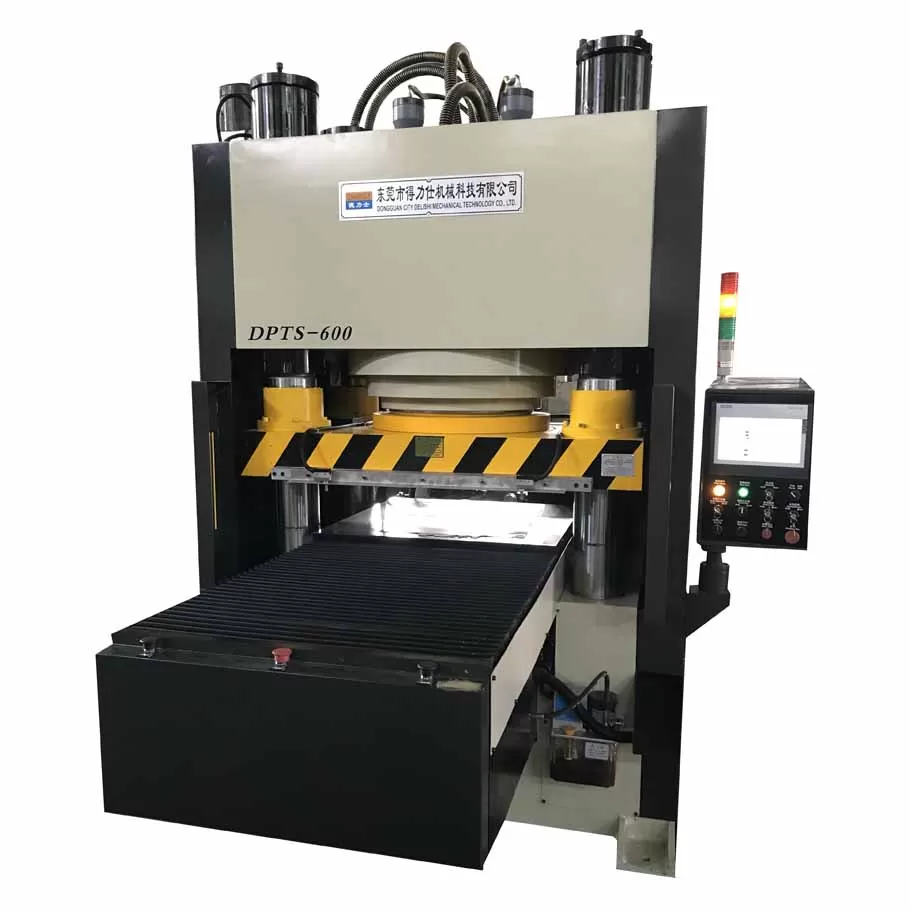

Jigsaw Puzzle Die Cutting Press Machine

Introduction:Jigsaw Puzzle Die Cutting Press Machine

1. Fast speed, high precision, easy operation;

2. With six side protection;

3. Compact and good appearance.

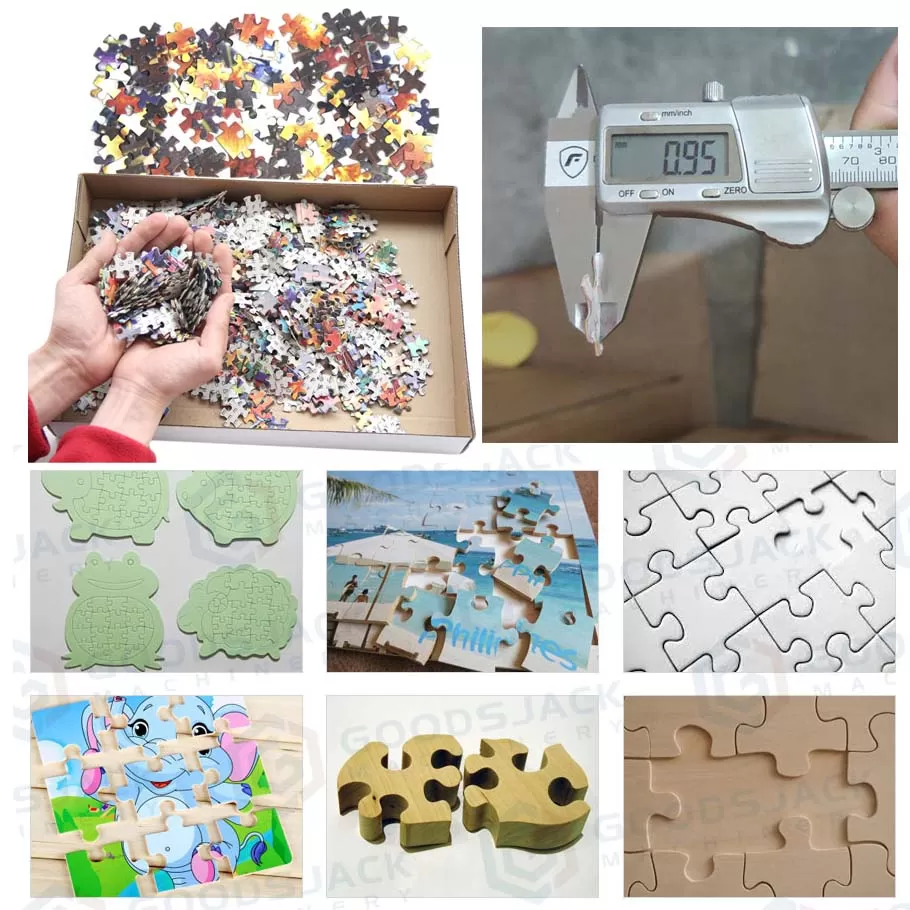

Applications of jigsaw puzzle hydraulic press

1. For wood and paper educational products

2. Plastic trimming and glue.

Model		Units	Specifications
Model		Units	DPT-300	DPT-500	DPT-1000
Main cylinder capacity		Ton	300	500	1000
System pressure		Mpa	240	250	250
Main cylinder stroke		mm	150(185)	150(185)	150
Open height		mm	165(200)	165(200)	170
Height of fixed working table		mm	1099(1114)	1284(1319)	1700
Size of working table	L-R	mm	800	900	1100
Size of working table	F-B	mm	900	1050	1440
Speeds of main cylinder	Fast forward	mm/s	135	135	110
	Working	mm/s	6	4	43
	Fast backward	mm/s	125	125	100
Over all dimension	L-R	mm	1580	1600	2200
	F-B	mm	1705	1865	1900
	H	mm	1855(1890)	2145(2180)	2930
Main motor power		kw	11	15	30
Weight(Approx)		kg	7600(7800)	9100(9500)	11670
