Introduction:
Servo press machine for Jigsaw puzzle, Compared to the conventional hydraulic press, the advances of the servo-hydraulic press is obvious:
First of all, much faster approaching, pressing and return speed
Secondly, all speed adjustable during the whole stroke
Furthermore, pressure repeat accuracy: ±1%
30%~60% lower energy consumption
Much less noise level
All parameters programmable on the central color touchscreen
Finally, the higher degree of reliability and less need for maintenance during the entire lifetime
Jigsaw Puzzle Machinery, Goodsjack Puzzle Cutting Machine & Automatic Puzzle Bagging Machine.
In order to increase the efficiency of jigsaw puzzle production, in the year 2016, Delishi brings out a reliable and efficient vertical automatic jigsaw puzzle production line into the market.
After then, lots of customers have come for GoodsJack for 1000~2000 piece jigsaw puzzle machines, including jigsaw puzzle cutting machine, automatic jigsaw puzzle scatter, as well as automatic jigsaw puzzle bagging machine.

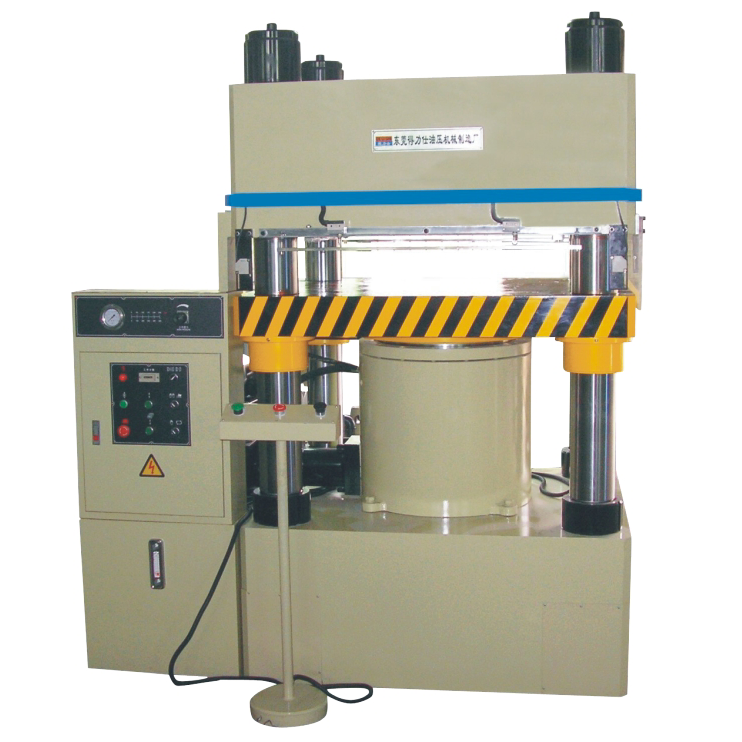

1000-2000 Jigsaw puzzle Hydraulic Press.
| Model | Units | Specifications | |||
| DPT-300 | DPT-500 | DPT-1000 | |||
| Main cylinder capacity | Ton | 300 | 500 | 1000 | |
| System pressure | Mpa | 240 | 250 | 250 | |
| Main cylinder stroke | mm | 150(185) | 150(185) | 150 | |
| Open height | mm | 165(200) | 165(200) | 170 | |
| Height of fixed working table | mm | 1099(1114) | 1284(1319) | 1700 | |
| Size of working table | L-R | mm | 800 | 900 | 1100 |
| F-B | mm | 900 | 1050 | 1440 | |
| Speeds of main cylinder | Fast forward | mm/s | 135 | 135 | 110 |
| Working | mm/s | 6 | 4 | 43 | |
| Fast backward | mm/s | 125 | 125 | 100 | |
| Over all dimension | L-R | mm | 1580 | 1600 | 2200 |
| F-B | mm | 1705 | 1865 | 1900 | |
| H | mm | 1855(1890) | 2145(2180) | 2930 | |
| Main motor power | kw | 11 | 15 | 30 | |
| Weight(Approx) | kg | 7600(7800) | 9100(9500) | 11670 | |
The above parameters are for reference, ordering the contract shall prevail.
1. Use servo control system to save energy 50-70%.
2. Pressure stability,pressure error ±1bar,repeatable positioning accuracy up to±0.02mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Remote maintenance service can be realized.
5. Can set up multi-stage pressure, multi-speed and contiouns fixed-pressure function.
6. Adopting an integral frame structure, high strength, low distortion and durability.
Our services including machine training, installation, maintenance and so on. If you need more information about this automatic solution, please feel free to contact us at your most convenience.
