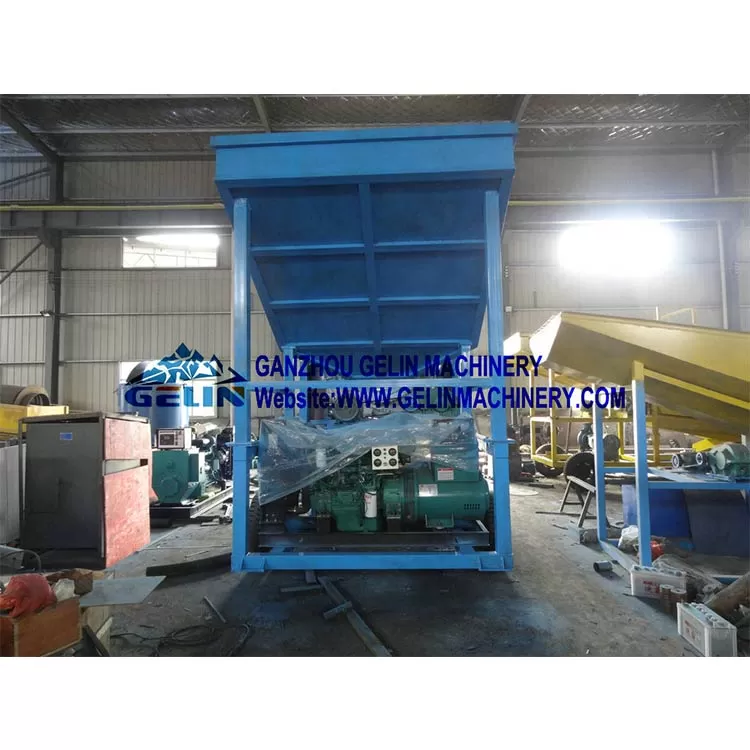

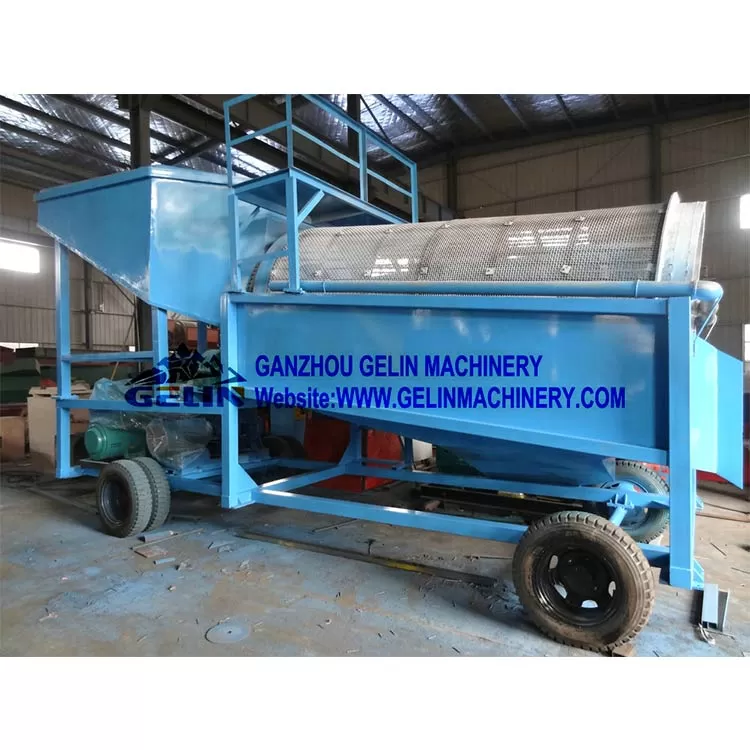

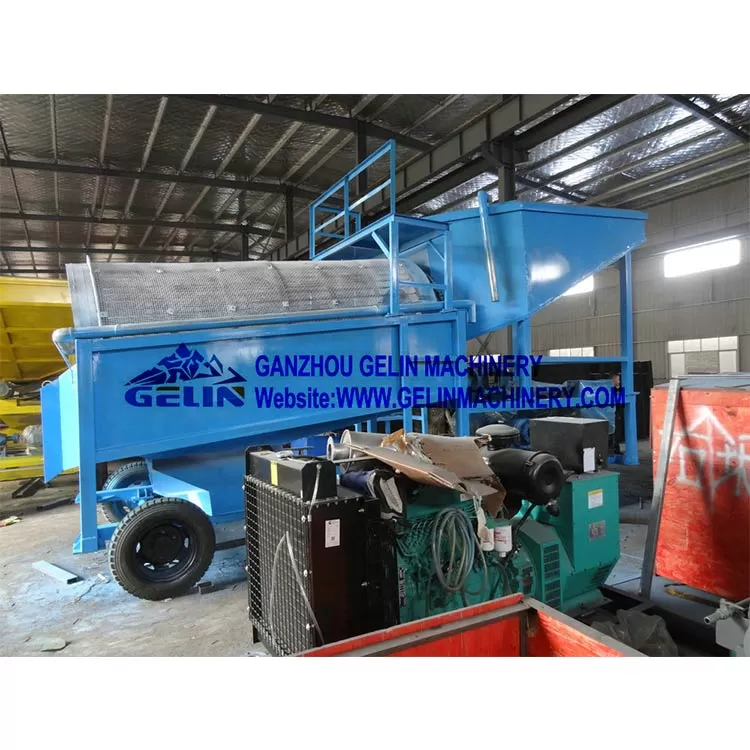

Introduction:Mobile trommel
PRODUCT DETAIL:
The Gold WashTrommel is usually used at the primary separation period of placer gold mining so as to washing and screening the gold ore. The upper sizes out are always reckoned as unuseful materials. The bottom sizes which contain the gold are usually processed by centrifugal concentrator or gold sluice box continuously to upgrade the gold ore. The concentrates of centrifugal concentrator could be processed by shaking table which is used to separate the gold from other minerals.
| Model | Capacity(t/h) | Drum diameter(mm) | Drum length(mm) | Weight(kgs) |
| GL510 | 5-10 | 500 | 1300 | 800 |
| GL615 | 10-20 | 600 | 1500 | 1000 |
| GL715 | 20-30 | 700 | 1500 | 1200 |
| GL815 | 30-40 | 800 | 1500 | 1500 |
| GL1020 | 40-100 | 1000 | 2000 | 2300 |
| GL1225 | 100-160 | 1200 | 2500 | 4000 |
| GL1530 | 150-200 | 1500 | 3000 | 5300 |
| GL1545 | 200-300 | 1500 | 4500 | 6100 |
| GL1848 | 300-450 | 1800 | 4800 | 7000 |
| GL2055 | 400-600 | 2000 | 5500 | 8000 |
