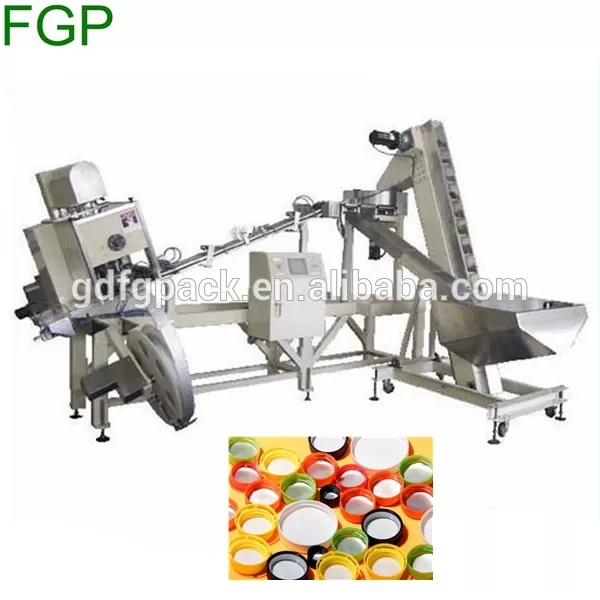

PE foam liner cutting inserting lining machine

Top grade with factory price for wad foil PE aluminum foam liner cutting inserting lining machine

Automatic cap lining machine can punch the liner to some mode and then finish capping to avoid the manual pollution and improve the product efficiency as well. It is mainly applied to packaging, medicine, food and so on industries.

Features:

1. PLC controller, panel operation, stable running and easy operation, 24-hour running available
2. Automatic checking to remove inverted cap
3. Rotary positioning for accurate capping
4. Punching device to achieve different capping by changing mould size or specification
5. Calculation function, liner shortage and tie-in checking function

Technique Parameter(standardized):

1. VDD: 220VAC±10%, single-phase, 50/60Hz, total power: 1KW
2. MPa: 0.6-0.8MPa, cfm: 300L/min at most;
3. Narrow Volume thickness (mm): 0.2-1.0, plate volume in (mm): 76, out (mm): 500 at most
4. Punching Speed (unit/min): 0-90 (liner with 22mm diameter, 0.3mm thickness and 26mm diameter cap as the testing medium, others according to actual usage)
5. Application for cap diameter (mm): 18-110, height (mm): 10-25. Customized machine is for your special size and form capping.

Optional Configuration:

1. Dispense device

2. Inhaler(filtration sterilization core included) adding

3. Liner unfold grip device

4. Upper vibratory feed unit or climbing deliverer
