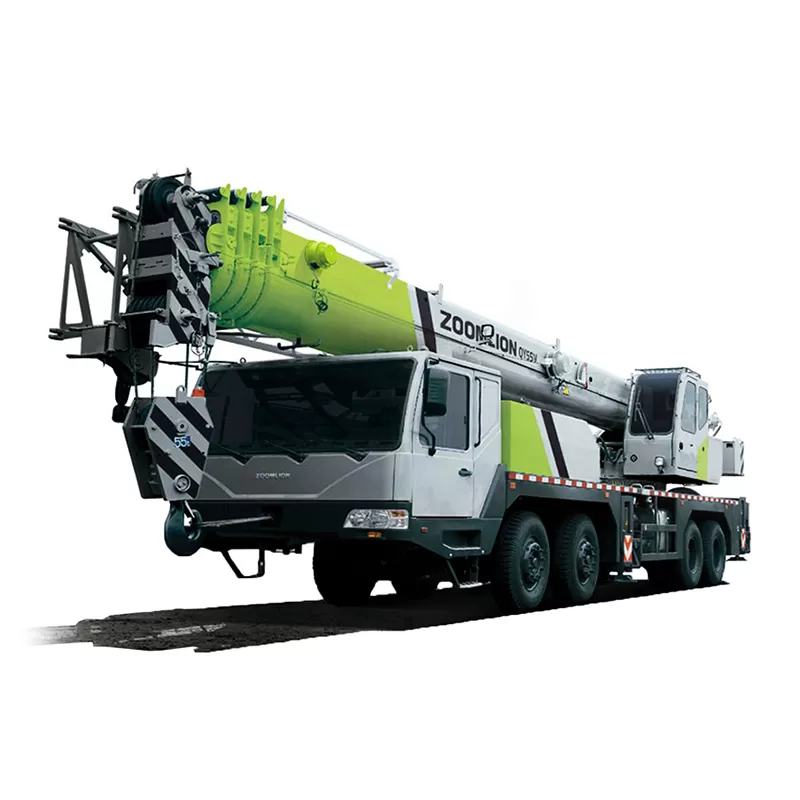

55 Tons Mobile Pickup Truck Crane

New and factory price QY55V532.2 55 Tons Mobile Pickup Truck Crane

• Continuously overall promotion makes our lifting capacity of crane be improved once and once again.

• 43 m main boom , two section jibs (9.5m ,16m).

• Optimized central slewing position increases the lifting capacity of the crane over rear.

•  Large outrigger span improves the working stability of the crane greatly,

• Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.

• Leading boom manufacturing process in trade.

  Item		Unit	Value	Remarks
  Working    performance	Max.    rated lifting capacity	kg	55000
  	Max.    load moment of basic boom	kN.m	2009
  	Max.    load moment of main boom(fully extended)	kN.m	1050
  	Max.    load moment of basic boom	m	12.6
  	Max.    lifting height of main boom	m	43.6	These    parameters do not include deflection of main boom and jib
  	Max.    lifting height of jib	m	59.5
  Working    speeds	Max.    hoist rope speed(Main winch)	m/min	120
  	Max.    hoist rope speed(Auxiliary winch)	m/min	120
  	Boom    demrricking up time	s	50
  	Boom    demrricking up time	s	95
  	Slewing  speed	r/min	0-2.2
  Driving	Max.    driving  speed	km/h	76
  	Max.    gradeability	%	40
  	Turning    diameter	m	≤24
  	Min.  ground clearance	mm	260
  	Oil    consumption per hundred kilometers	L	43
  Mass	Deadweight    in driving condition	kg	42000
  	Complete    vehicle kerb mass	kg	41870
  	Front    axle load	kg	16000
  	Rear    axle load	kg	26000
  Dimension	Overall    dimensions(L×W×H)	mm	13700×2800×3650
  	Longitudinal    distance between outriggers	m	5.92
  	Transversal    distance between outriggers	m	Fully    extended:7.1,      Intermediately    extended:4.8
  	Tail    slewing radius	mm	3900
  	Main    boom length	m	11.4    - 43.0
  	Main    boom angle	°	-2    - 80
  	jib    length	m	9.5,16.0
  	Offset	°	0,30
