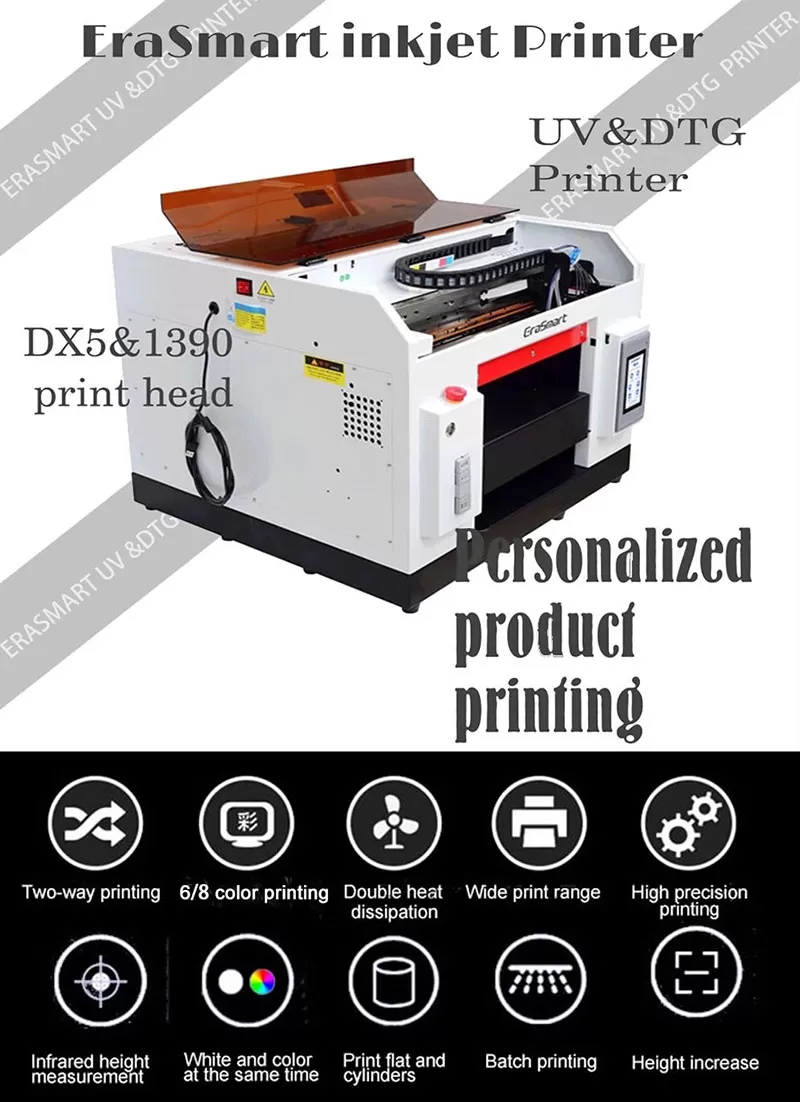

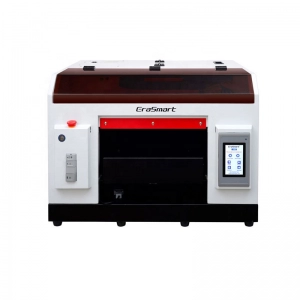

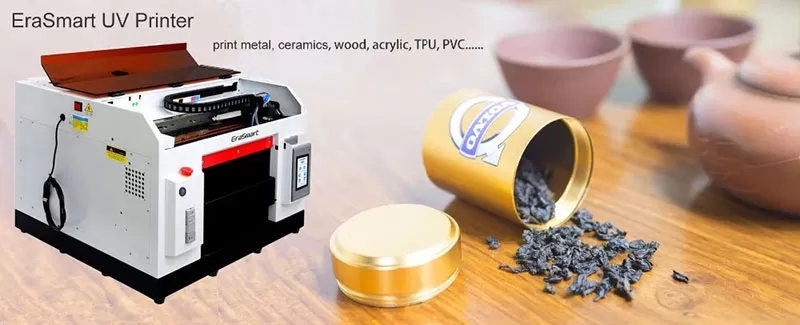

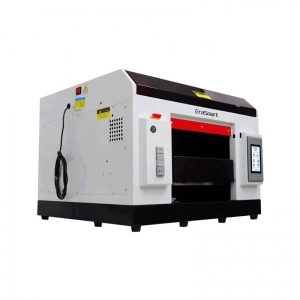

Introduction:1390 UV Printer, A3 UV Printer Flatbed Printer Machine For Glass
Product Description
UV flat-panel printer, also known as universal flat-panel printer or UV inkjet flatbed printer, breaks through the bottleneck of digital printing technology and reach the level of staring with single page without plate-making and full-color image printing at one time in the true sense. Compared with traditional printing technology, it has many advantages. EraSmart UV flatbed printer adopts stable platform technology and advanced stepper motor drive mode. It combines infrared meanwhile, laser positioning, water-cooling and air-cooling to meet long-term continuous work requirement. It has a wide print range and can print products within 130 mm height. EraSmart UV inkjet printer can be printed with almost unlimited material. For example mobile phone case, stone cameo, acrylic board, wallet, customized steel film, wallpaper, ceramic tile, U disk, CD-ROM, glass, ABS, PVC etc.
Brand | EraSmart | Ink color | CMYK+WW/YKLcLm MC |
Model | A3 | Ink supply | 150ml*6 continuous ink |
Print head | Epson 1390 | Emboss Print | Available |
Print Resolution | 5760x1440dpi | Software | AcroRIP |
Equipment Dimension | 660*660*500mm | Effect Print Size | A3(280*400mm) |
Package Dimension | 760*740*640mm | Print Speed | A3(1440dpi/15min) |
Print Height | 0-130mm, measured with infrared ray | ||
Operating System | WindowXP,7,10 | ||
Ink Consumption | 1m2/10ml | ||
Platform Adjustment | Touch Screen+ Height Measurement by Infrared Ray | ||
FAQ
1. Q: What materials can UV printer print on?
A: It can print almost all kind of materials, such as Metal, Wood, Glass, PVC, Acrylic, Ceramics, Plastic, PPU .etc
2. Q: What products can print on using UV Printer?
A: You can print on Phone Case, CD, Golf Ball, ID Card, Pen, Oil Painting, etc.
3. Q: What different between A4 and A3 UV Printer?
A: A4 UV printer only can print flat surface, A3 UV printer can print cylinder. A3 UV printer comes with a cylinder printing tray.
4. Q: What different between UV printer and DTG printer?
A: DTG Printer is without led lamp, UV Printer comes with UV lamp, so DTG Printer uses Textile Ink for T-Shirt and Garment
printing, UV Printer uses UV ink for Metal, Wood, Glass, PVC, Acrylic, Ceramics, Plastic, PPU printing. UV ink needs to use a UV
lamp to curing.
5. Q: Can the uv printer print emboss 3D effect?
A: Yes, our UV printer can print 3D effect. Please contact us for more information.
6. Q: What materials need to use pre-coating?
A: Some materials need to spray pre-coating, such as metal, glass, acrylic, etc.
7. Q: What is the warranty of the printer?
A: Our factory provides one year of warranty, except print head and other ink contact parts.
8. Q: How can we start to use the printer?
A: We will send the manual with the package of the printer. Please read the manual before using and operate strictly as manual. We
will also provide teaching video and technical support online.
9. Q: Where can I buy the spare parts and ink.
A: We also provide the spare parts, ink and some printing materials, such as phone case, oil painting,
pre-coating and cleaning liquid, etc. If you need, please contact us.
10. Q: What about the maintenance of our printer?
A: We suggest to click automatic cleaning every day.
