Barcode Scanner Cable

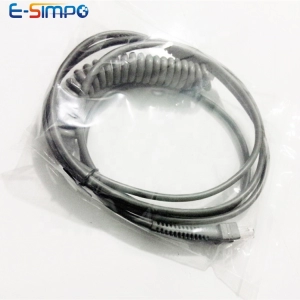

Introduction:3M Spiral USB Cable for Barcode Scanner Symbol LS2208 CBA-U12-C09ZAR USB A male to RJ45 10P10C

Quick Details

Use:: COMPUTER, Barcode Scanner

Cable Length:: 3M

USB Type:: Standard

Model:: CBA-U12-C09ZAR

Product Name:: Ls2208 Symbol Barcode scanner Spiral usb cable

Body Material:: PVC Coating

Conductor:: 100% Pure copper wire

Color:: Gray

RJ45:: 10P10C

USB:: Standard USB 2.0 Port

Application:: Replace USB KB PS/2 RS232 Cable for Symbol LS2208 SCANNER

Length:: 3Mtr(10ft) after strentch

Keywords:: LS2208 USB Cable

Packaging & Delivery

Selling Units:: Single item

Single package size:: 20X15X1.5 cm

Single gross weight:: 0.115 kg

Lead Time :

Quantity(Pieces)	1 - 1000	1001 - 5000	>5000
Est. Time(days)	3	7	To be negotiated

Specification

Setting Information
Item	USB Cable for Symbol Bar-code Scanner Ls2208
Length	3Mtr/10ft after strength
Connector	Standard USB RJ45 10P10C
Material	PVC Coating, Pure Copper Wire
Usage	Replace old USB, PS/2, RS232 Cable for Ls2208 Series scanner
Compatible with	LS1203,LS2208/AP,LS4008I,LS4208,LS3008,LS3408,LS4278,LS3478,LS3578,LS9208i,LS9203i,LS7708,LS7808,DS3400,DS3408,DS3508,DS3478,DS3578,DS6878,DS9808,DS6707,DS6700,DS6708,DS6608,DS4208,DS6878,DS9208 ,STB3578

Product Description

Qualified Halogen-free, environmentally friendly materials:

1. 95P soft PVC coat; 2. 19-core 0.11mm pure copper wire;

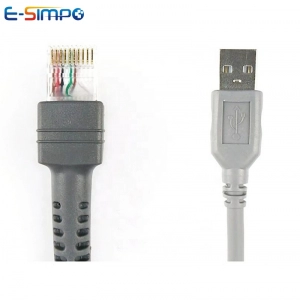

3. 50u gold-plated RJ48 10P10C Connector 4. Foil shield with anti-jamming

5. Inside cotton fiber cable with high tensile strength tensile

6. Anti-scratch surface with fogging treatment

Interface Setting

This USB Cable can replace not only old USB Cable, but also old KB Wedge(PS/2), and RS232 Serial Cable

Just finish the setting below before you use.

Suitable for Symbol Barcode Scanner

LS1203,LS2208/AP,LS4008I,LS4208,LS3008,LS3408,

LS4278,LS3478,LS3578,LS9208i,LS9203i,LS7708,

LS7808,DS3400,DS3408,DS3508,DS3478,DS3578,

DS6878,DS9808,DS6707,DS6700,DS6708,DS6608,

DS4208,DS6878,DS9208 ,STB3578

Hot Item

Barcode Scanner Series	Interface	Length	Color	Part No	Suit For
Motorola Symbol Barcode Scanner	USB Cable	2mtr straight	Gray	CBA-U01-S07ZAR	LS1203,LS2208/AP,LS4008I,LS4208,LS3008,LS3408, LS4278,LS3478,LS3578,LS9208i,LS9203i,LS7708, LS7808,DS3400,DS3408,DS3508,DS3478,DS3578, DS6878,DS9808,DS6707,DS6700,DS6708,DS6608, DS4208,DS6878,DS9208 ,STB3578,LI4278
		3mtr straight	Gray	CBA-U25-S09ZAR
		5mtr straight	Gray	CBA-U10-S15ZAR
		10mtr straight	Gray
		3mtr spiral	Gray	CBA-U12-C09ZAR
		5mtr spiral	Gray	CBA-U09-C15ZAR
	PS/2 KB Wedge Cable	2mtr straight	Gray	CBA-K01-S07PAR
		5mtr straight	Gray
		3mtr spiral	Gray
		5mtr spiral	Gray	CBA-K02-C09PAR
	RS232 Cable(Need 5V1A Power Adapater)	2mtr straight	Gray
		5mtr straight	Gray	CBA-R01-S07PAR
		3mtr spiral	Gray
		5mtr spiral	Gray
	USB(RS232-to-USB converter)	2mtr straight	Gray	RS232 to usb port	LS5700 LS5800 LS7808 LS7708
	USB(PS/2-to-USB converter)	2mtr straight	Gray	KB Wedge to usb	LS1902T LS1902 LS1908

Barcode Scanner Series	Interface	Length	Color	Suit For
Honeywell Metrologic	KB / PS2 TO USB with CHIP	2mtr straight	Black	MS7120 MS1690 MS9540 MS5145 MS3580 MS9535
	RS232 TO USB with CHIP	2mtr straight	Black	MS7120,MS5145,MS1690,MS9540,MS3580,MS9535
	USB	2mtr straight	Black	MS5145,MS1690,MS9540,MS7120,MK7120,MS1633,MS9590i,MS3580,MS7180,MS7600,MS7625,MS7580,MS6220,MS9541,MS9521,MS9544,MS7220,MS6520,MS9590,MS9520,MS3780,MS9535, YJ3300,IS3480,IS3580,HF600,YJ5900,ZL2200,MS7320,YJ5800
		3mtr straight	Black
		5mtr straight	Black
		10mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
	RS232 COM Cable (need power adapter)	2mtr straight	Black
		5mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
	PS/2 KB Wedge Cable	2mtr straight	Black
		5mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
Honeywell HHP 1900	USB	2mtr straight	Black	1200G 1202G 1250G 1250GAP 1300G 1400G 1500G 1900GHD 1900GSR 1902GHD 1902GSR
		3mtr straight	Black
		5mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
	RS232 Cable (need power adapter)	2mtr straight	Black
		5mtr straight	Black
		2mtr spiral	Black
		5mtr spiral	Black
	PS/2 KB Wedge Cable	2mtr straight	Black
		5mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
Honeywell HHP 3800	USB(PS 2 TO USB adapter)	2mtr straight	Black	IT3800LTP, IT3800LX IT3800LRPDF VHD, IT3800LR,4410HD
Honeywell HHP 3800	USB(PS 2 TO USB adapter)	3mtr spiral	Black	IT3800LTP, IT3800LX IT3800LRPDF VHD, IT3800LR,4410HD
Honeywell HHP 3800	USB Cable	2mtr straight	Black	3200, 3800g, 3800r, 3820, 4206, 4236, 4600g, 4600r, 4820, 4600Q, 3800i, 4800i, 4820i, 6300dpm 6320dpm, 3900, 3900i, 4800p, 4800dr, 4200Q
		3mtr straight	Black
		5mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
	PS/2 KB Wedge cable	2mtr straight	Black	IT3800,3800G,4800i,4410HD,4600g
		5mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
	RS232 Com Cable(Need Power Adapter)	2mtr straight	Black	IT3800LTP, IT3800LRPDF VHD, IT3800LX, 3200, 3800g, 3800r, 3820, 4206, 4236, 4600g, 4600r, 4820, 4600Q, 3800i, 4800i, 4820i, 6300dpm 6320dpm, 3900, 3900i, 4800p, 4800dr, 4200Q
		5mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
Honeywell YJ	USB	2mtr straight	Black	YJ4600
	RS232(need power adapter)	2mtr straight	Black	YJ4600
	USB	2mtr straight	Black	YJ3300\YJ5900
	RS232(need power adapter)	2mtr straight	Black	YJ3300\YJ5900
Datalogic PSC	USB	2mtr straight	Black	QD2130, QD2110, QD2100, QD2330, QD2310, QD2300, QM2130, QM2110, QM2100, GD4130, GD4110, GD4100, GD4330, GD4310, GD4300, GD4430, GD4410, GD4400, GD4430-B, GM4130, GM4110, GM4100, GBT4130, GBT4110, GBT4100, GBT4430, GBT4410, GBT4400, GD4137, D100, D110, D130, D140, D150, D200, D432, D131
		3mtr straight	Black
		5mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
	KB PS2	2mtr straight	Black
		5mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
	RS232(need power adapter)	2mtr straight	Black
		5mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
	USB(PS 2 TO USB Adapter)	2mtr straight	Black
	USB(RS232 to USB)	2mtr straight	Black	VS2200
CINO	USB Cable	2mtr straight	Black	F680 F780
	PS2 KB Wedge Cable	2mtr straight	Black
		5mtr straight	Black
		3mtr spiral	Black
		5mtr spiral	Black
