Automatic Milk Packing Machine

Introduction:High Accuracy 380v Bottles Electric Automatic Milk Packing Machine

High Accuracy 380v Bottles Electric Automatic Milk Packing Machine

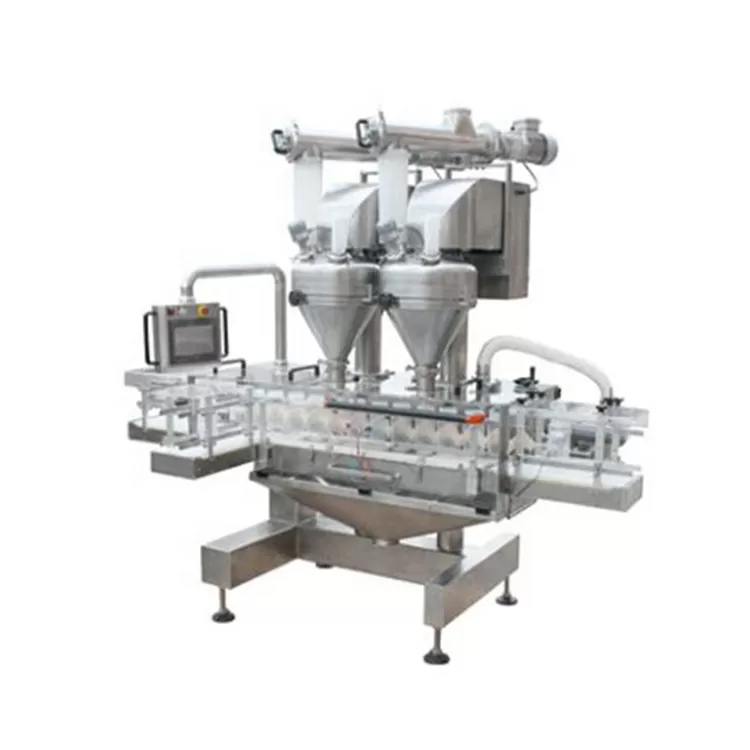

Double-Hopper Powder Filling Machine
Dosing Range: ≤3kg
Packing Speed: high speed mode 40-80cans/min high accuracy mode 25-45cans/min
Container Size: Φ60mm-Φ180mm
H:80-270mm(Change Rigid container feeding screw)
Metering Accuracy: high speed mode±0.3-1% high accuracy mode±0.5-2g
(Varies according to the product features and packing speed)

Double-Hopper Powder Filler
Model No.:DPF-200
Metering Model: Auger dosing with weighing feedback and rejecter, all safety switches. Cans lift and vibration when filling.
Cans Feeding model: by screw
Filling Range:≤5000g
Filling Accuracy:
High speed mode: ±0.3-1%,
High accuracy mode: ±1-2g
(depend on product property and filling speed)
Speed:
High speed mode: Max 120 cans/min
High accuracy mode: Max 60 cans/min
(speed depend on shape of container, product property and filling weight)
Container Type: tin can, glass bottle, plastic jar, paper can, etc.
Hopper Volume:50L (horizontal semi open)
Container Size: D:Φ50-200mm,H:80-270mm
Power: 3-phase 380V 50Hz
Material: stainless steel 304

Main Components
*PLC: SIEMENS
*Touch Panel: SIEMENS
*Servo motor: Panasonic or Schneider
