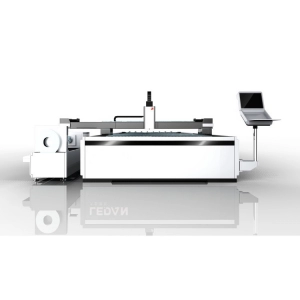

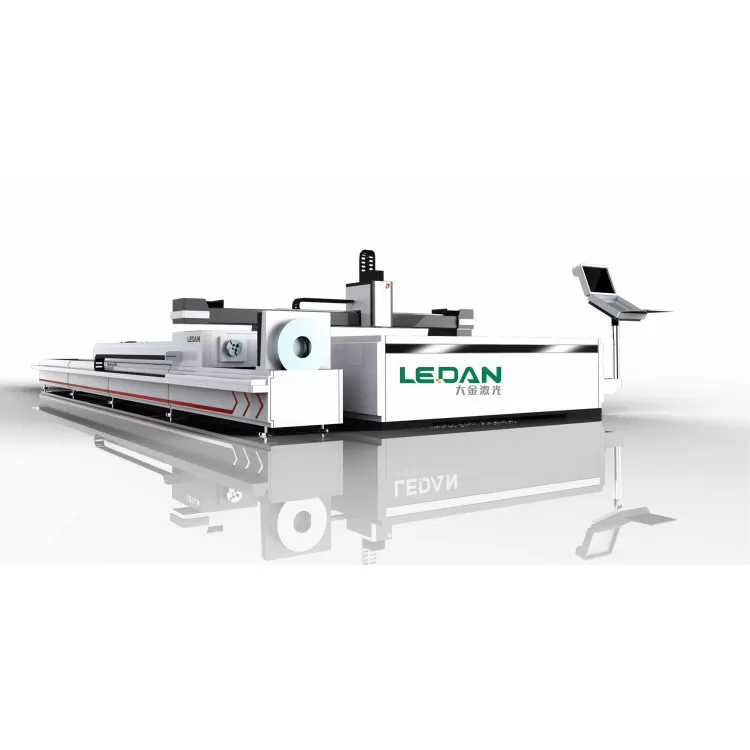

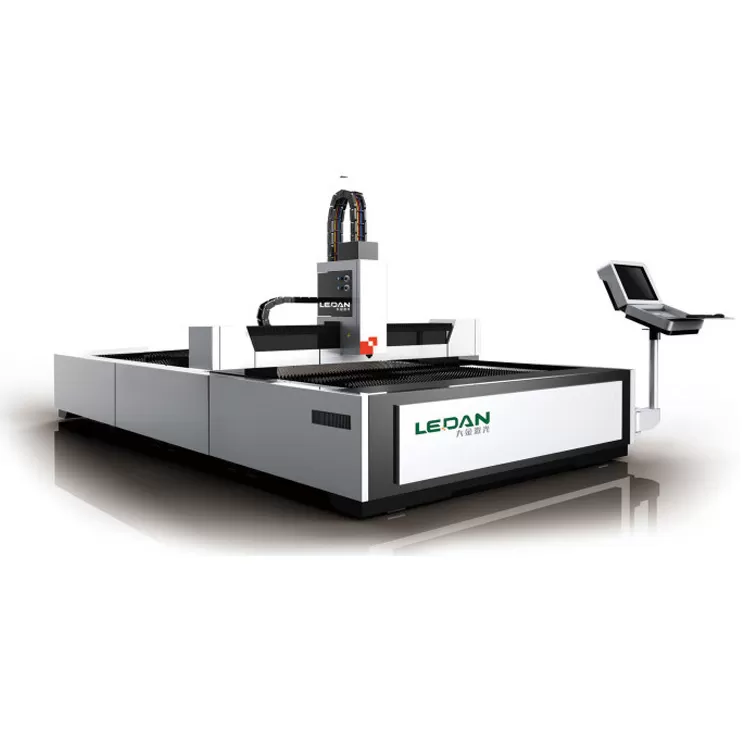

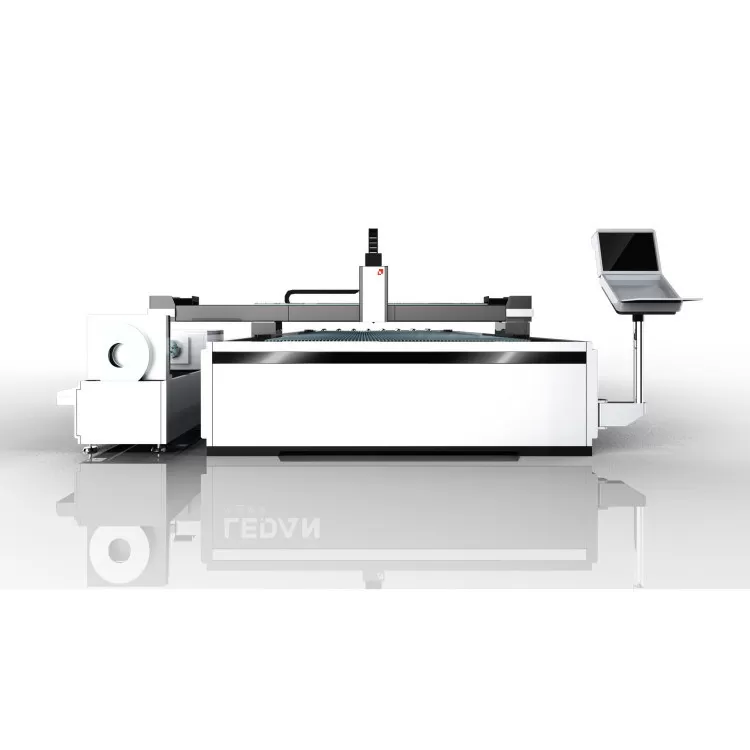

Metal laser cutting machine

Introduction:Metal laser cutting machine

Technical Parameters

Processing area 3000mm*1500mm, 3000mm*2000mm, 4000mm*1500mm
  4000mm*2000mm, 6000mm*2000mm
   Running speed 1200m/min
  Laser power 500W/700W/1000W/1500W/2000W/2400W/3000W/4000W/5000W
   transmission mode precision rack double drive
   Drive mode Servo drive
  Support circular format PLT, DXF, IGS, AI
  Working voltage 380V/50Hz
  Equipment power <20KW
   Working environment 5-45℃ Humidity ≤80%, no condensation
   feeding method fully automatic interchangeable worktable
   Sheet positioning, automatic edge finding and positioning




User Guide

1. The protective lens in the laser head of the laser cutting machine is checked once a day. When the collimator or focusing lens needs to be disassembled, record the disassembly process, pay special attention to the installation direction of the lens, and do not install it wrong;

2. Before turning on the power of the water chiller, check the water level of the water chiller. It is strictly forbidden to turn on the water chiller when there is no water or the water level is too low to avoid damage to the water cooling equipment. It is strictly forbidden to squeeze and step on the water inlet and outlet pipes of the water cooler to keep the waterway unblocked;

3. The operator of the laser cutting machine or the person approaching the laser during laser use should wear appropriate laser protective glasses and protective clothing. In the area wearing protective glasses, there must be good indoor lighting to ensure The operator operates smoothly;

4. When using gas cylinders, avoid crushing wires, water pipes and air pipes to avoid electric leakage, water leakage and air leakage. The use and transportation of gas cylinders should comply with gas cylinder supervision regulations. It is forbidden to explode the gas cylinder in the sun or close to a heat source. When opening the bottle valve, the operator must stand on the side of the bottle mouth;
