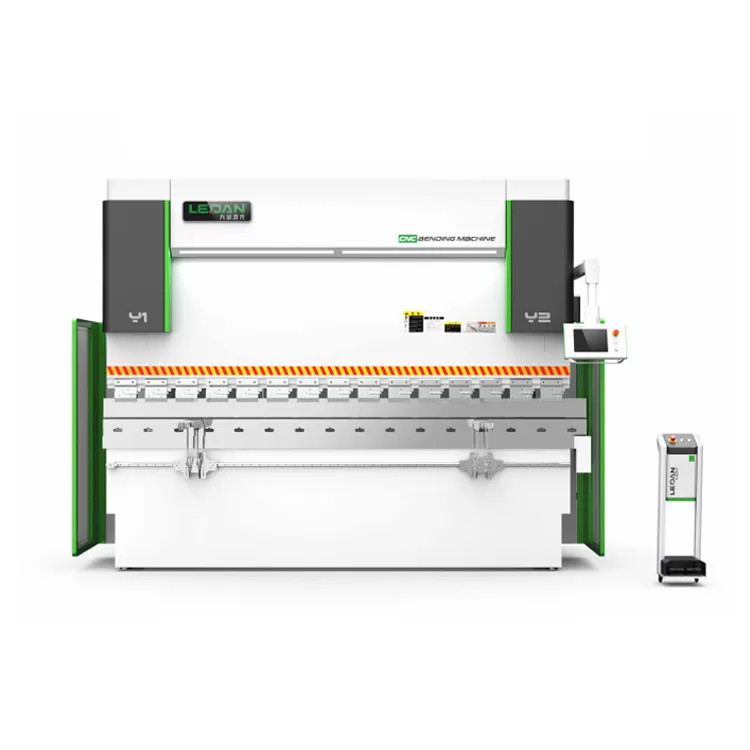

Electro-hydraulic servo CNC bending machine

 Technical parameters:

Gauge positioning accuracy ±0.1mm
Gauge repeat positioning accuracy ±0.03mm
Linear accuracy ±0.75/1000mm
Gauge transmission precision screw
Gear drive servo drive

User guides

1. First, turn on the power, turn on the switch on the control panel, and then start the oil pump, so that you can hear the sound of the oil pump rotating (the machine does not work at this time).

2. Stroke adjustment, you must pay attention to adjusting the stroke when using it, and you must test it before bending. It must ensure that there is a gap of plate thickness when the upper die goes down to the bottom. Otherwise it will cause damage to the mould machine. The adjustment of the stroke also has electric quick adjustment.

3. For the selection of bending notches, a notch with a width of 8 times the thickness of the plate should generally be selected. If you bend a 4mm sheet, you need to choose a slot of about 32.

4. Backgauge adjustment generally has electric quick adjustment and manual fine adjustment, the method is the same as the shearing machine.

5. Step on the foot switch to start bending. The CNC bending machine mold is different from the shearing machine. It can be released at any time, and the foot will stop when you release it, and it will continue to go down when stepping on.
