Karaoke Speaker

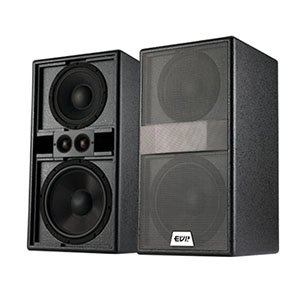

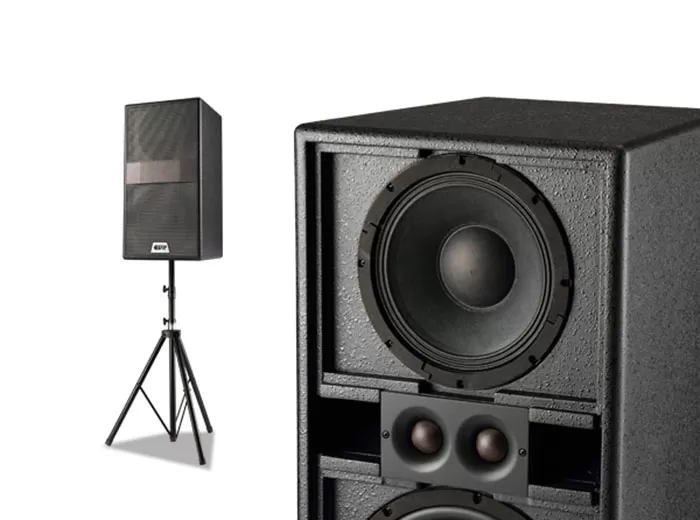

Introduction:KTV-20D( Karaoke Speaker built-in Amplifier)

Overview:

KTV-20D

Karaoke Speaker built-in Amplifier

Built-in DSP
8 Ohms Rms Output Power（Tweeters）: 1 x 50W (class-A/B)
8 Ohms Rms Output Power（Midrange）: 1 x 80W (class-D)
4 Ohms Rms Output Power (Woofer): 1 x 150W (class-D)
Distortion(THD): 0.5%
Low Pass Crossover: 20Hz ~200Hz
High Pass Crossover: 5KHz ~20KHz
Frequency Response: 20Hz ~ 20kHz
Signal to Noise Ratio: (Reference 1W into 4 Ohms)>75dB
XLR/TRS Input Sensitivity（High）: 0.65V
XLR/TRS Input Sensitivity（Middle）: 4.5V
XLR/TRS Input Sensitivity（Woofer）: 2.7V
Audio input with XLR jack
Audio input with TRS jack
Audio output with XLR jack
Audio output with TRS jack
Phase: 0-180°
Dimensions/(mm): 319x351x598
