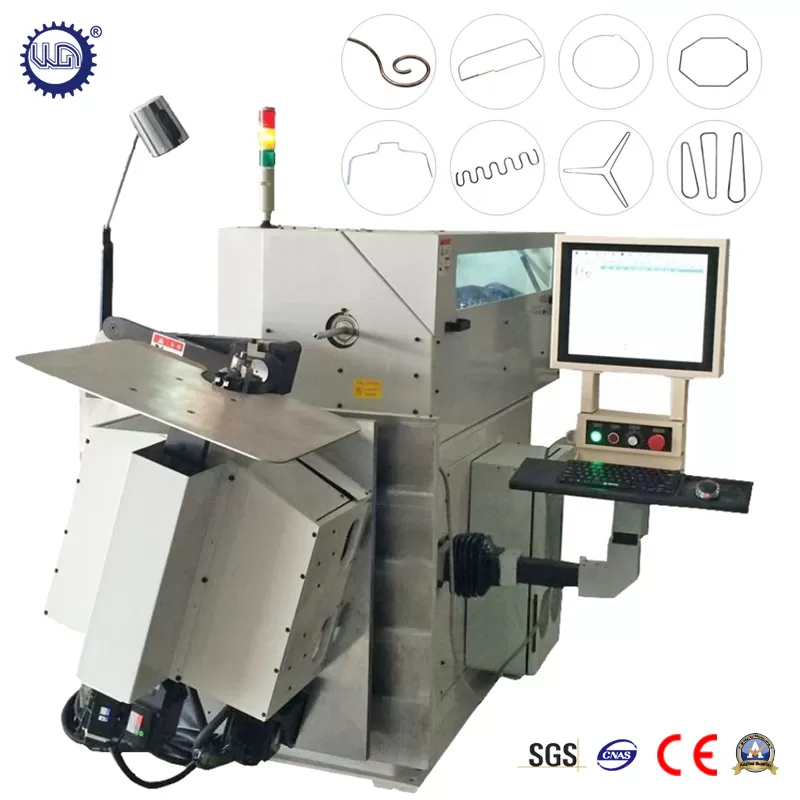

CNC 2DWire bending machine

Introduction:CNC 2DWire bending machine

NC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.

Advantages & Feature:

3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable.

Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.

Application field:

1）Auto Industry area
2）Metal wire industry

3）Display table and cargo shelf
4）Furniture and Kitchen

5）Hardware industry
6）Mattress, Sofa spring area
7）Architecture area
8）Hardware Artcraft

Technical Paramter:

Model型号	GT-WB-60-5A	GT-WB-60-10A	GT-WB-80-9A	GT-WB-100-9A	GT-WB-120-7A
Wire size 线径(mm)	2.0-6.0	2.0-6.0	3.0-8.0	4.0-10.0	5.0-12.0
Axis轴数	5	10	9	9	7
wire feeding value 送线指令(mm)	最大Max.10000.00 最小Min.最小0.01	最大Max.10000.00 最小Min.最小0.01	最大Max.10000.00 最小Min.最小0.01	最大Max.10000.00 最小Min.最小0.01	最大Max.10000.00 最小Min.最小0.01
Feeding length number 送线轮数量	3 pairs/对	3 pairs/对	3 pairs/对	4 pairs/对	4 pairs/对
Wire turning angle 线转角度	Unlimited 无限	Unlimited 无限	Unlimited 无限	Unlimited 无限	Unlimited 无限
Platform Lifting Height 平台提升高度	+50至-170mm	+50至-170mm	+25至-120mm	+25至-120mm	+25至-120mm
twisting head lift height 扭转头升降行程	+20至-100mm	+20至-100mm	+20至-180mm	+20至-180mm	+20至-180mm
left to right moving range 从左到右移动范围	/	Left左:80mm Right右:40mm	Left左:100mm Right右:50mm	Left左:100mm Right右:50mm	Left左:100mm Right右:50mm
Feeding front and back moving range 送线前后移动范围	/	Front前:300mm Back后:100mm	Front前:300mm Back后:100mm	Front前:300mm Back后:100mm	Front前:300mm Back后:100mm
Total output power of servo motors伺服电机总功率（KW)	14.5KW	20.5KW	27.8KW	28.5KW	37.5KW
machine size尺寸(mm)	1800x1200x1200	4100x1420x1600	4100x1520x1600	4200x1520x1600	4500x1800x1700
machine weight机器重量	2000.0(kg)	3200.0(kg)	3400.0(kg)	4800.0(kg)	5600.0(kg)
