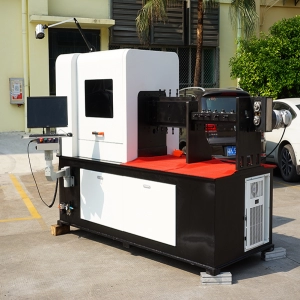

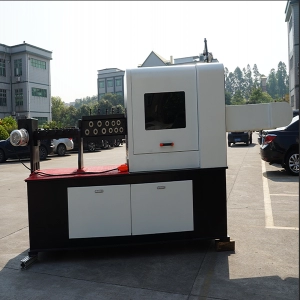

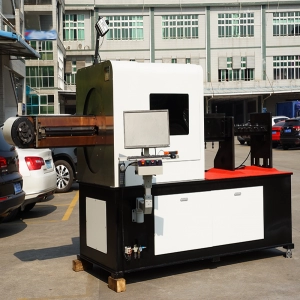

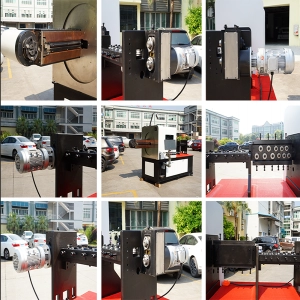

3D wire bending machineBL-3D-61600

Introduction:1.The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production. 2, wire feed and arm, both separate and cooperate, when turning the head really do not

wire bending machine

Technical Parameters

(Model No.)BL-3D-61600
No. of Axis6Axis
Input OD of Wirehard material
Φ6.0~φ10.0mm
soft material
Φ8.0~φ16.0mm
No. of Feeding Round4sets
Power of Wire Feeding Motor15.0KW
Power of Turning Motor4.4KW
Power of Wire Cuter Motor7.5KW
Power of Moving Motor0.75KW
Power of Angle Control Motor0.4KW
Weight of Machine4200KG
Input Power380V/50HZ/3PH
Size(L*W*H)3960mm X 1670mm X1700mm

Product Advantages

1.The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production.
2, the computer Quick start-up and shut-down,operation simple, convenient, vivid.  The computer interface can be produced while adjusting the speed while changing the program.
3. High-speed motors imported from Japan and speed reducer imported from Germany are used in the configuration, and the production speed is more than 25% higher than that of similar products in the domestic industry.
4, wire feed and arm, both separate and cooperate, when turning the head really do not turn the line, can achieve smaller outer diameter arc and multi-circle product forming.
5. The production can achieve no change in the Angle at the slowest speed and better production stability.
6. Bearings, gears and other important parts are imported from Taiwan, one year warranty. The equipment is durable and reliable.
7, High precision, can do 6.0-18.0 mm wire diameter range of wire molding products, error to 0.1 mm

Product Application

Products Are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.

Wire Bending Machine products

Wire Bender Videos

Wire Forming Drawing

wire forming samples
Bending sample of wireBending sample of wireBending sample of wire
