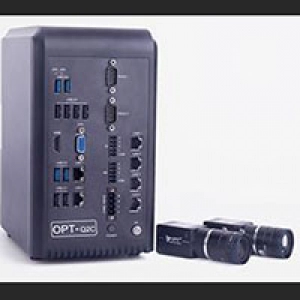

Q2C Vision Controller

Introduction:Q2C Vision Controller

Features：

◆Integrated functions and small footprint

◆High-performance multi-core CPU

◆SSD+HDD combining performance with capacity configuration
◆Supports several PoE GigE cameras to acquire images simultaneously
◆Reasonable design and excellent heat dissipation performance

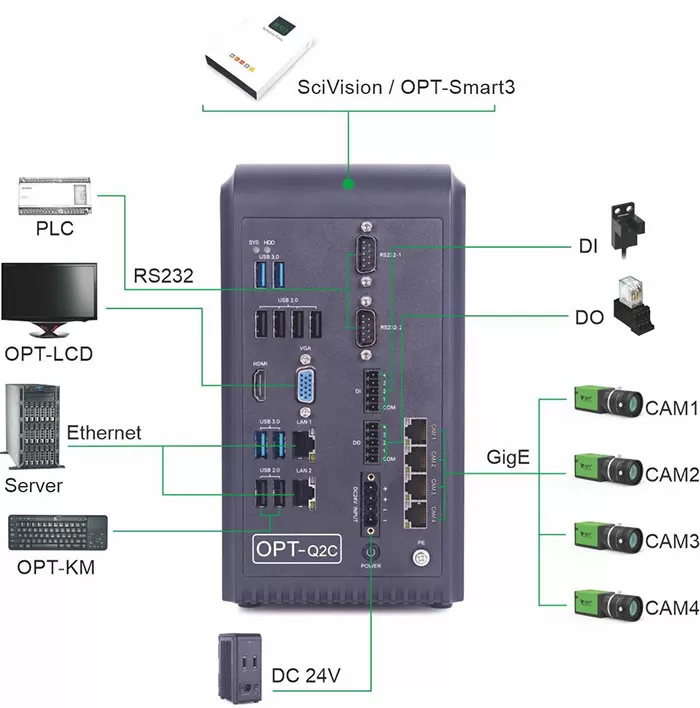

Connector Description:

Specifications

Model	OPT-Q2C-73215	OPT-Q2C-53215	OPT-Q2C-33215
CPU	i7	i5	I3
Number of Camera Support	5 (Note:6 Network ports)^[1]
Memory	8GB (It supports up to 32GB)
SSD	64GB SSD (Upgradable)
HDD	1TB (Upgradable)
Power	24VDC/7A
Cooling	By smart fan
Video Interface	l×HDMI, l×VGA
Serial Port	2×RS232
USB	4×USB3.0, 6×USB2.0
DI	4
DO	4
Operating Temperature	0℃- 50℃ (32℉- 122℉)
Operating RH	10% - 85%, non-condensing
Storage Temperature and RH	-20℃-75℃（-4℉-122℉）
