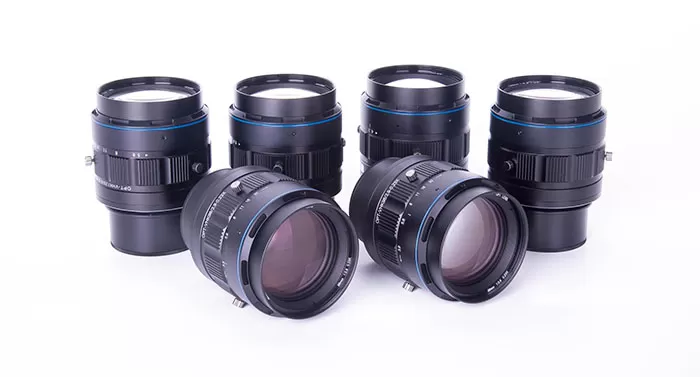

Hawk Series Line Scan Lenses

Introduction:Hawk Series Line Scan Lenses

Product Features：

◆High resolution

High resolution optical design; Ø63 mm image circle^[1],compatible with (16k)3.5 μm, (12k)5 μm, and (8k)7 μm line scan cameras

◆Low distortion

Total distortion < 0.22%^[2], Min. distortion as low as 0.005%

◆High uniformity
High relative illumination across the entire image with low vignetting
◆Wide magnification range
0.02X - 2.1X

[1] Up to 126 mm image circle for OPT-VHK116/8.6-2.0X and OPT-MHK40/4.2-0.1X is up to 58 mm
[2] Distortion at primary magnification OPTMHK40/4.2-0.2X distortion ＜ 0.87 %

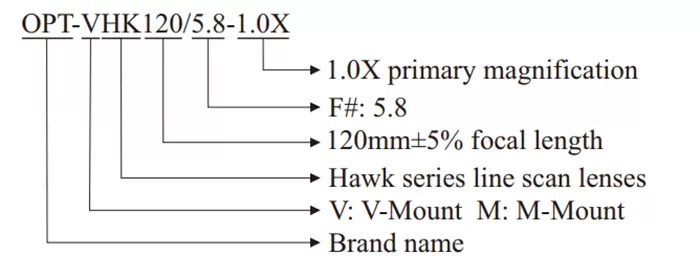

Selection Guide：
