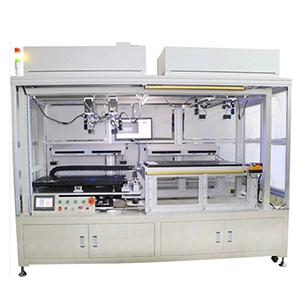

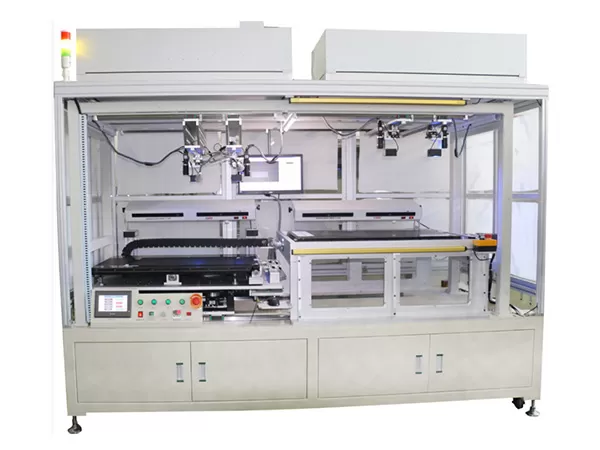

Introduction:CCD automatic alignment laminating machine
Suitable for medium and large size soft-to-soft and soft-to-hard lamination, commonly used for ITO film, metal grid conductive film, nano silver
conductive film, AG film, naked eye 3D grating film, etc., and OCA and glass cover.
1. The CCD visual image takes pictures, and the servo motor controls the three-axis UVW platform to automatically align.
2. Adopt a flip-type platform, and the rollers automatically fit together.
3. The equipment adopts Japanese SMC starter components and high-precision moving parts, with stable operation and high fitting accuracy.
4. The lower platform adopts a rigid board structure, which has higher precision than the mesh board.
5. The equipment is protected by a grating, a two-hand start button, safe operation.
| model | YQ-E1025 | YQ-E1035 |
| Effective size (mm) | 500*550(25 inch) | 600*900 (35 inch) |
| Dimensions (mm) | 2050*1050*2150 | 2700*1160*2150 |
| Equipment power | Three-phase 380V 50HZ 5KW | Three-phase 380V 50HZ 6KW |
| Weight (KG) | 1000 | 1200 |
| Capacity | 30S/PCS | 40S/PCS |
| Fitting method | Manual loading and unloading, manual tearing of film, automatic alignment, automatic bonding | |
| Fitting accuracy | ±0.1mm | |
| working environment | Clean, dust-free, clean room (CLASS1000) | |
