Stretch Wrap Film Making Machine

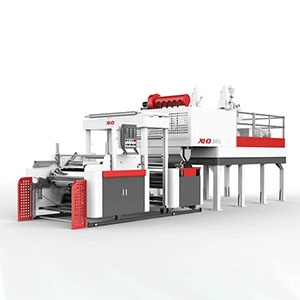

Introduction:Low Cost 2 Layers 1000mm LLDPE Stretch Wrap Film Making Machine

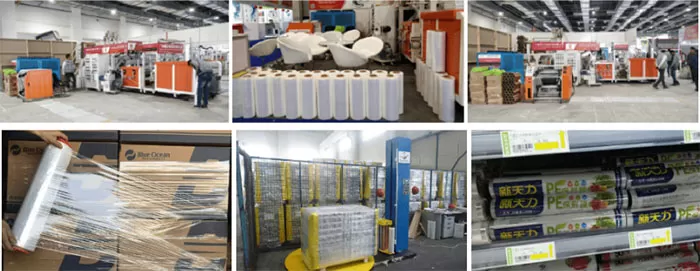

Suitable for producing:
(1) stretch film rolls with below specs
* 2~5 KGS/roll small hand use stretch film rolls.
* 10~18 KGS/roll machine use stretch film rolls.
* Medium size rolls with roll weight around 33.5 KGS at 500 mm film width.
(2) 8~10 microns 250~500 mm PE cling film rolls.
Brief information of the machine:
| No. | Item | Specs |
-
| Model: | XHD-55/75-1250 |
-
| Industrial Power Supply: | 3 phases industrial power supply |
-
| Total Installation Power: | 75 KW (for the machine only) |
-
| Main Raw Material: | LLDPE, LDPE (few) & MLLDPE |
-
| Thickness of Film: | 12~50 microns (minimum thickness can be 8 microns) |
-
| Width of the Useful Film: | Maximum width: 1000 mm |
-
| Film Layer Structure: | AB two layers or ABA three layers |
-
| Designed Linear Speed: | 150 M/Min |
-
| Extrusion Output: | 80~150 kgs/h |
-
| Dimensions (L×W×H): | 7.5*3*3.4 M (for reference only) |
-
| Gross Weight: | 5500 KGS (for reference only)
|
Highlights on machine performance:
1. High speed design: up to 150 M/min.

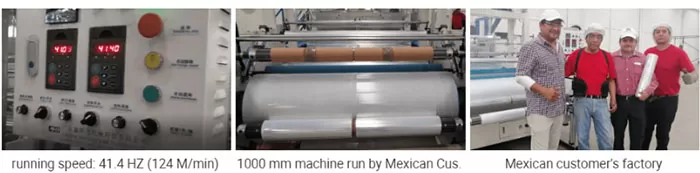

2. High working speed: 100~120 M/min.
3. High production capacity: 100~130 KGS/H (depends on the film thickness and line speeds).
4. Quality stretch film which can compare with the film produced by European machines.
5. Excellent production capacity and power consumption ratio: around 0.38 KWH/KG.
8. One man is enough to manipulate the whole machine!
***Remarks: we also have the winder design for the jumbo rolls (up to 40 KGS per roll at 500 mm film width). We had already sold a lot of 1000 mm jumbo roll stretch film machines to Turkey.
Highlights on machine configuration:
(1) Coupling with rubber type of element is used to connect the main motor and the gear box.
(2) Alloy screws and barrels with good nitrogen treatment.
(3) Automatic film cutting and roll change.
(4) Top quality XHD T-die (standard) or JC-TIMES T-die (optional).
(5) ESD film pinning device is used for pinning the film edges.
(6) Metal hoses are used for connecting the water joints and better cooling.
(7) Idle guide rollers with hardened surface for stable and fast speed production.
