Pe Cling Film Machine

Introduction:3 Layers Or 5 Layers Automatic 1500 mm Lldpe Cast Stretch Film Machine And Pe Cling Film Machine | 1500 mm Pe Cling Film Machine

Suitable for producing:

1) stretch film rolls with below specs
* 2~5 KGS/roll small hand use stretch film rolls.
* 10~18 KGS/roll machine use stretch film rolls.
* Medium size rolls with roll weight around 33.5 KGS at 500 mm film width.
2) 8~10 microns 250~500 mm PE cling film rolls.
3) 30~35 microns 250 mm/300 mm/500 mm/750 mm silage film rolls (UV protective film rolls).

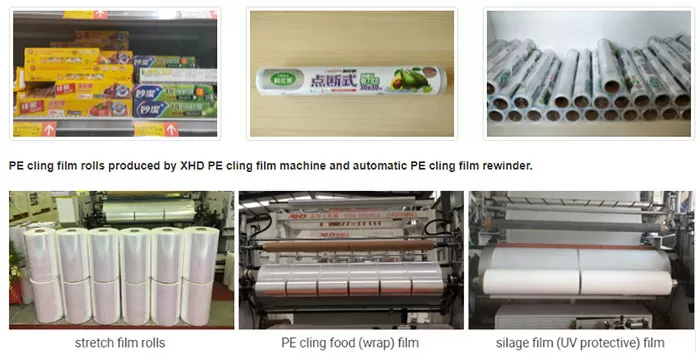

Different types of film produced by XHD stretch film machine and PE cling film machine

Brief information of the machine:

No.	Item	Description
	Model:	XHD-55/80/55-1850
	Industrial Power Supply:	3 phases industrial power supply
	Total Installation Power:	120 KW (for the machine only)
	Main Raw Material:	LLDPE, LDPE (few) & MLLDPE
	Thickness of Film:	8-50 μm
	Width of the Useful Film:	Maximum 1500 mm
	Film Layer Structure:	CBA 3 layers or CABAC 5 layers
	Designed Linear Speed:	200 M/min
	Extrusion Output:	130-200 Kg/H
	Dimensions (L×W×H):	12.55.54.6 M (for reference only!)
	Gross Weight:	12,000 Kg (for reference only)

Highlights on machine performances:

1. High speed design: up to 200 M/min.
2. High working speed: 140~160 M/min.
3. High production capacity: 130~200 KGS/H (depends on the film thickness and line speeds).
4. Quality stretch film which can compare with the film produced by European machines.
5. Excellent production capacity and power consumption ratio: around 0.4 KWH/KG.
6. One man is enough to manipulate the whole machine!
7. Automatic paper cores unloading, finished rolls unloading, standby air shaft loading.
A jumbo roll winder is optional (up to 50 KGS per roll at 500 mm film width). We had already sold 60+ sets of jumbo roll stretch film machines and PE cling film machines to Turkey and Middle East countries.

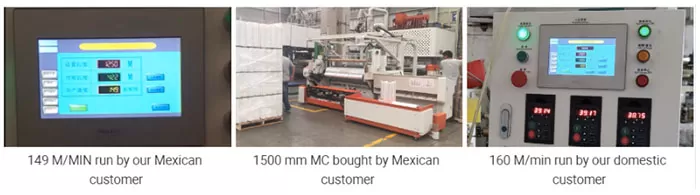

High speeds of XHD stretch film machines and PE cling film machines bought by customers.

Highlights on machine configuration:
(1) Coupling with rubber type of element is used to connect the main motor and the gear box.
(2) Alloy screws and barrels with good nitrogen treatment.
(3) Automatic screen changers powered by hydraulic station.
(4) Top quality XHD T-die (standard) or JC-TIMES T-die (optional).
(5) Big diameter (standard 720 mm/optional 800 mm) and quality cooling rollers from professional suppliers.
(6) Silicone-coated roller is installed for cleaning the primary cooling roller.
(7) Synchronous wheels and belts, idle rollers with hardened surface are used for high speed production.
(8) Automatic air shaft inflation and deflation, automatic spare air shaft loading.
(9) Powerful crusher and new hopper design for recycled flakes feeding.
(10) Patented automatic system for paper cores unloading and loading.

(1) Many sales offices and after-sale service partners can provided timely and valuable services during the epidemic. Countries we can find available engineer for after-sale service:
India, Vietnam, Thailand, Turkey, Azerbaijan, Russia and Mexico
(2) One (01) year’s warranty on receipt of the machine and equipment within Mainland China.
(3) The Chinese engineer dispatch is only available when the epidemic is over or when it is safe for traveling.
(4) Any available local or nearby country engineer dispatch can be arranged on the condition that the buyer or the end user can accept the cost.
(5) Online technical support is always available if the buyer or the end user wants to install the machine by themselves.

*** For more about the after-sale service, please feel free to contact with us, thanks.
