Introduction:Extension Spring Machine
Use range:

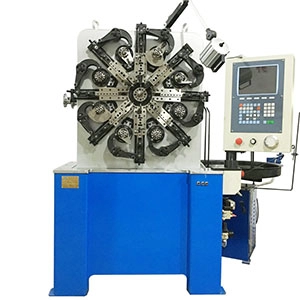

XD-CNC20 Spring Former is three to four axis spring making machine, it is able to make all kinds of springs of wire diameter ranging from 0.30mm to 2.30mm.
2. Computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
3. XD-CNC20 cnc spring machine is equipped with Xinding spring machine controller. The controller system can save 1000 file numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.
| Model: | XD-CNC20 |
Wire diameter: | φ0.3～2.3 mm |
Axes: | 3 axes |
Maximum Outside Diameter: | 40mm |
Maximum Feeding Length: | unlimited |
Maximum Manufacture Speed: | 100pcs/min |
Feed Speed: | 200m/min |
Memory Number: | 1000PCS |
Wire Feed Servo Motor: | 2.7 KW |
Cam Servo Motor: | 2.7 KW |
Quin Servo Motor: | 0.75 KW |
Power AC: | 220V 3P 50/60Hz |
Dimensions (L*D*H): | 1400X550X1600MM |
Wooden Case Dimensions: | 1600x600x1700mm |
Machine Weight: | 900Kg |
Gross Weight: | 950Kg |
