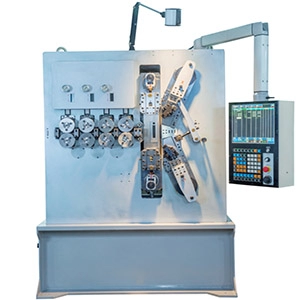

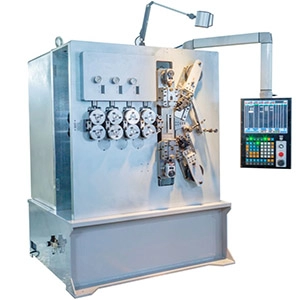

XD-680 Spring Machine

Introduction:XD-680 compression spring machine is a 6-axis spring coiler which is applicated in wire diameter range 3.0-8.00mm.

Product Advantage

1. XD-680 compression spring machine is a 6-axis spring machine consisting of wire feeding axis ,upper cutter axis, bottom cutter axis, pitch axis. What’s more, we add a spring OD controlling axis, all these axis assures to make most precise springs with most efficiency.
2. The spring machine cutter can be adjusted inside and outside on computer easily and flexibly.thus saved manual work.
3. Servo motion system and servo drive controlled, 15" control panel, easy to operate.
4. All necessary work relating to spring production can be accomplished by finger on computer panel.

5. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.

6. Computer can automatically decelerate according to the timing when the probe should be used.
7. Production speed can be increased or decreased at any time of running the machine.
8. Optional accessories: length gauge.

Product Range:

This spring coiling machine makes various kinds of compression springs, wire coil, taper springs, double-taper springs, safe springs, clip spring as well as various simple torsion springs, its products can be applied to military, construction, motorcycles ect.

Technical Parameters

Model:	XD-680
Wire diameter:	Φ3.00～8.00 mm
Axes:	6 axes
Maximum Outside Diameter:	120 mm
Maximum Feeding Length:	unlimited
Maximum Manufacture Speed:	100pcs/min
Feed Speed:	80m/min
Memory Number:	1000PCS
Wire Feed Servo Motor:	22 KW
Upper Cutter Servo Motor:	5.5 KW
Bottom Cutter Servo Motor:	5.5 KW
Pitch Servo Motor:	3.8 KW
OD Servo Motor:	5.5 KW*2
Power AC:	3-Phase 380V
Dimensions (LDH):	1900X1600X2000mm
Wooden Case Dimension:	2000x1700x2150mm
Machine Weight:	4000Kg
Gross Weight:	4500Kg

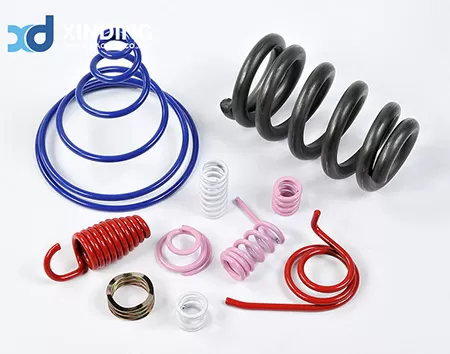

Sample Display

This CNC spring machine produce various ultra-precision irregular springs, 3.0-8.0mm compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.
