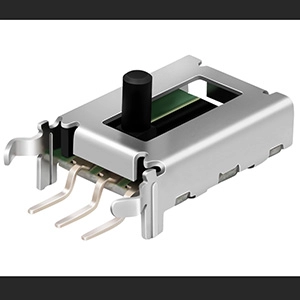

Introduction:SD0801 Direct Sliding Resistance Sensor

Product Introduction：

Sensor model: SD0801

Name: Direct sliding resistive sensor

Main specifications: 1. Sliding stroke: 8.0mm; 2. Rated power: 0.05W; 3. Rated voltage: DC 12V; 4. Linear error: ± 1.5%; 5. Working temperature: -40 ℃~105 ℃; 6. Sliding life: over 100000 times

Product features: The product has a small volume, high linear accuracy, and sliding life.

Application field: Mainly used in front light adjusters for automobiles.

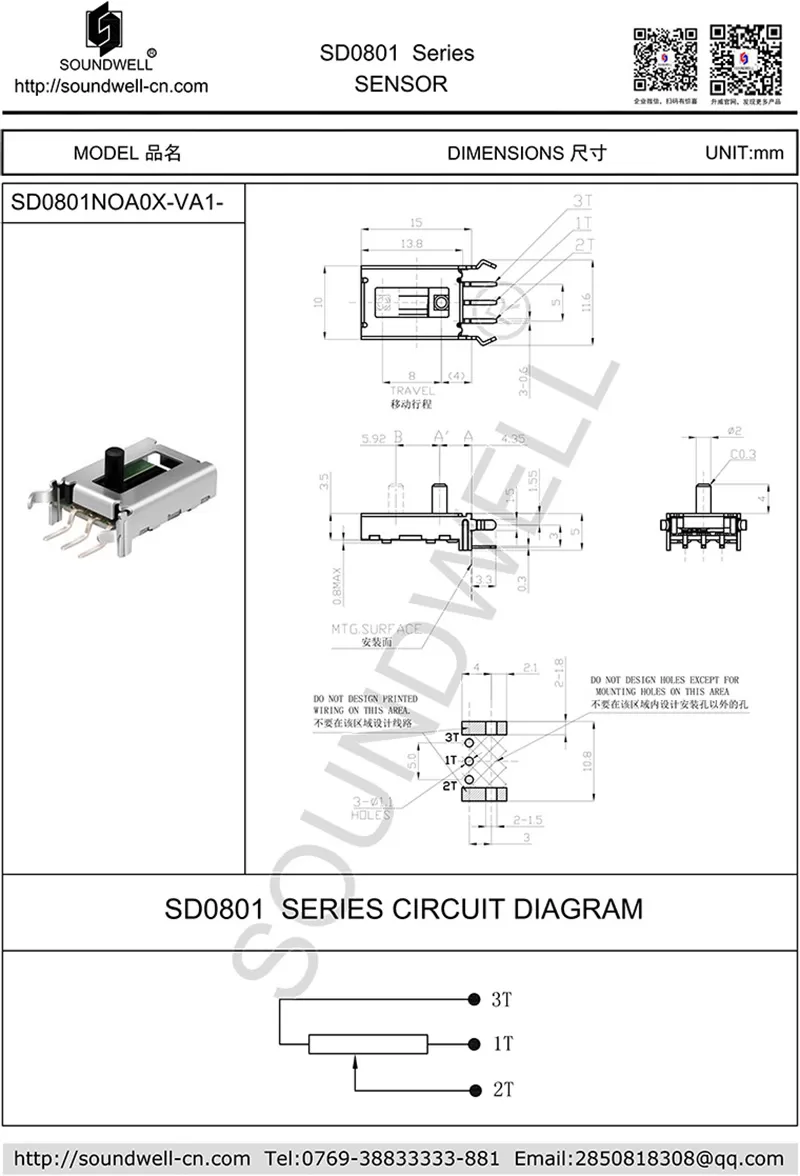

Product specifications：

MECHANIAL CHARACTERISTIC Mechanical characteristics

1. Sliding force: below 200gf

2. Total travel slide: 8.0mm

Electrical Characteristics

1. Total Resistance Range: 5K Ω ± 20%;

2. Rating Power: 0.05W

3. Rated Voltage: 12V DC

4. Linearity error: ± 1.5%;

Endurance CHARACTERISTIC

1. Sliding Life: 100000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet"

Note: If there are any differences in specifications, parameters, or drawings between the instruction manual and the acknowledgment letter, the acknowledgment letter shall prevail.
