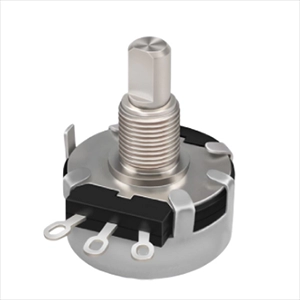

power Potentiometer

Product Introduction：

Sensor model: RD27

Name: high-power Potentiometer

Main specifications: 1. Boundary dimension: 27mm; 2. Rated power: 2W; 3. Rated voltage: DC 45V; 4. Total resistance range: 1K Ω~1M Ω; 5.Residual resistance: ≤ 20 Ω; 6.Rotation angle: 312 °; 7. Rotating torque: 70-280gf.cm; 8. Stop strength: ≥ 14Kgf.cm;  9. Linear accuracy: ≤ ± 5%;  10.  Working temperature: -55 ℃~120 ℃;  11. Rotation life: More than 30000 times;

Product features: It can meet the needs of high-power applications, has good temperature resistance and sealing performance, and the shape and length of the shaft handle can be customized.

Application field: Suitable for industrial equipment and agricultural machinery.

MECHANIAL CHARACTERISTIC Mechanical characteristics

1. Rotational torque: 70-280 gf.cm

2. Mechanical rotation angle: 312 °

Electrical Characteristics

1. Standard Resistance Range: 1K Ω~1M Ω

2. Rated power: 2W

3. Maximum operating voltage DC 45V

4. Line error Linear accuracy: ≤ ± 5%

5. Insulation resistance: 100M Ω 1 Minute at DC 500V

6. Dielectric voltage withstand voltage: 1 Minute at AC 1000V

Endurance CHARACTERISTIC

1. Rotational life: 30000 cycles Min

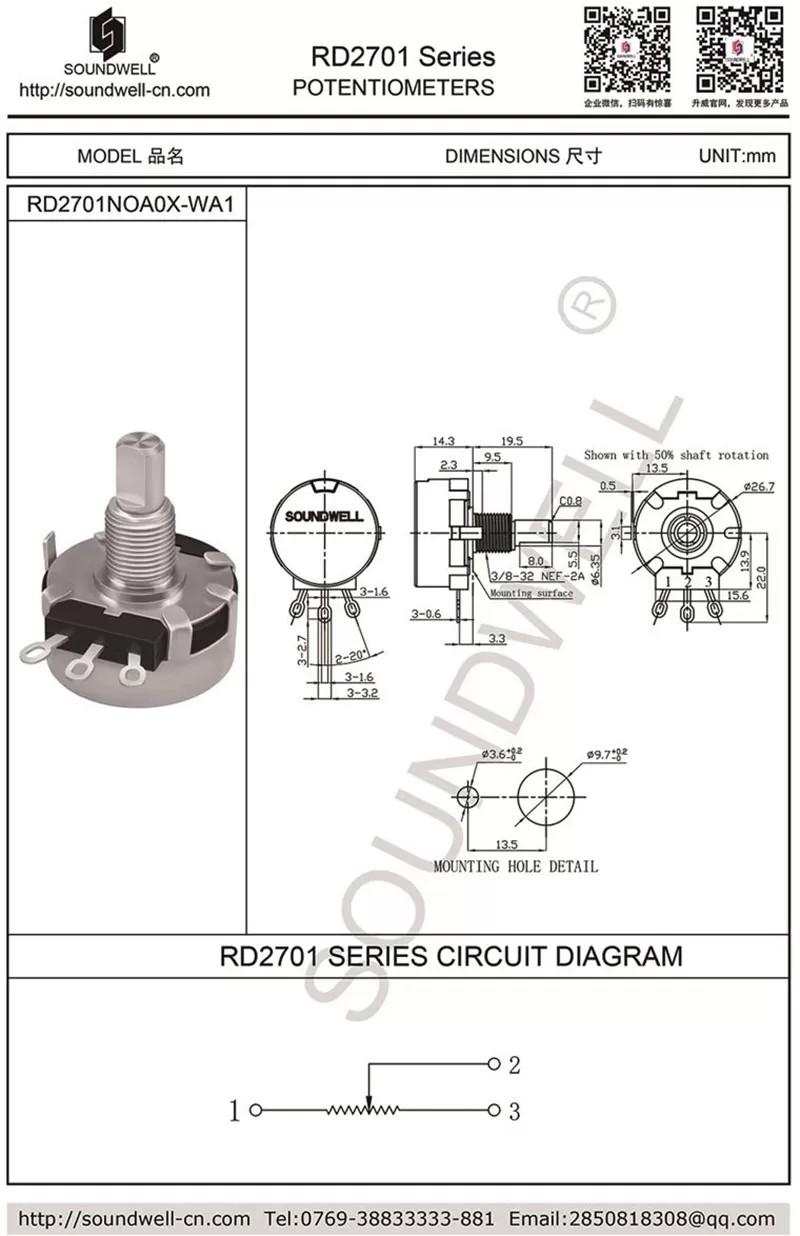

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet"
