LED display

Product Introduction：

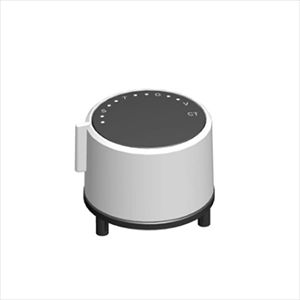

Multifunctional module model: MD58

Name: Multifunctional module with LED display

Main specifications: Rated power: 0.125W;
Maximum operating voltage: DC 10V
Working temperature: -20 ℃~60 ℃
Mechanical rotation angle: 180 °
Number of gears: 13
Rotating torque: 1500 ± 300gf.cm
Switch pressure: 600 ± 150gf
Pressing stroke: 1.5 ± 0.5 mm
Rotation life: 200000 times
Press life: 200000 times
LED light emitting color: red/blue/green
Rated voltage of vibration motor: DC 3-5 V

Product features: A multifunctional knob module that integrates LED display, vibration, rotation, and pressing. Output by connector, plug and play.
Application field: mainly used for function selection and confirmation of coffee machines, household appliances, and other electronic products.

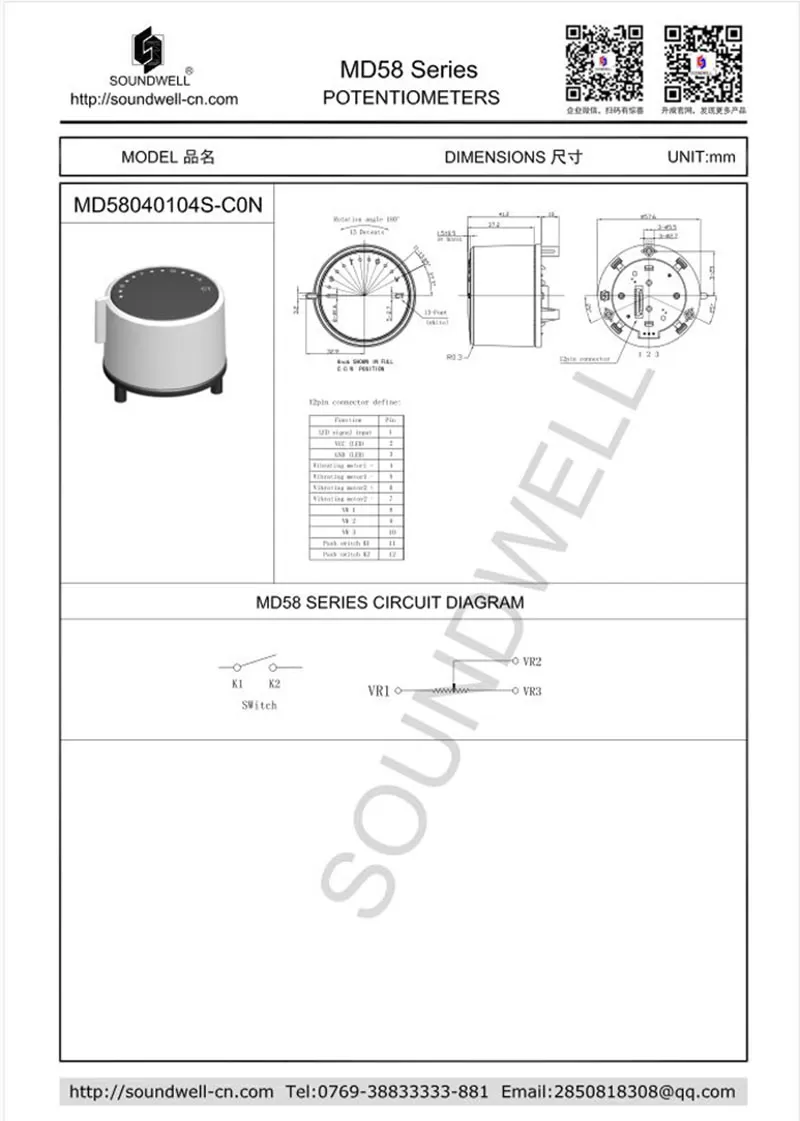

MD58 product specifications with LED display multifunctional module：

MECHANIAL CHARACTERISTIC Mechanical characteristics

1. Rotational Torque: 1500 ± 300 gf.cm

2. Number of detections click: 13 clicks

3. Shaft Stop Strength: ≥ 5 Kgf.cm

4. Shaft Wobble (mm p-p): 0.3mm Max

 Electrical Characteristics

1. Total Resistance Range: B10K, ± 20%;

2. Resistance Tape Resistance Characteristic Curve: B

3. Rating Power: 0.125W

4. Max Maximum operating voltage: 10V DC

5. Taper Tolerance At Each Position: ± 3.5%

6. Insulation Resistance: 50M Ω 1 Minute at DC 250V

7. Dielectric Voltage withstand voltage: 1 Minute at AC 250V

 Endurance CHARACTERISTIC

1. Rotational Life: 200000 cycles.

2. Push switch press life: 200000 cycles.

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet"
