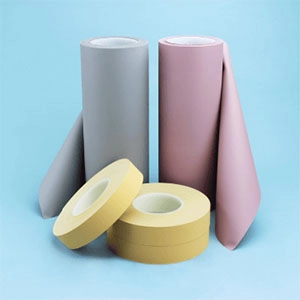

Thermal Film Series
Introduction:SC Series thermal film can optionally use fiberglass or polyimide film as the reinforcement carrier. This carrier is coated on both sides with a mixture of thermal conductive filler and silicone, efficiently conducting heat while providing high mechanical
To request a sample of our Thermal Films or inquire about more product information, please email us at tina@u-sheen.com or Click here.
Product Description
The SHEEN's SC Series Thermal Films are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, with options ranging from 0.8 to 5.0 W/m·K.
◆ Optional fiberglass or polyimide film can be used as the reinforcement carrier.
◆ High mechanical strength and excellent electrical insulation properties.
◆ Customizable die-cut shapes to meet specific customer needs.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Uninterruptible Power Supplies (UPS)
◆ MOSFETs
◆ Switching power supplies
◆ Power amplifiers
◆ Electric vehicle motor controllers
Properties
| Properties | Color | Reinforcement Carrier | Thermal Conductivity | Thickness | Standard Hardness |
|---|
| Unit | - | - | W/m·K | mm | Shore A |
|---|
| SC800FG | Gray | Fiberglass | 0.8 | 0.3 ~ 0.5 | 45 |
|---|
| SC900FG | Gray/Pink | Fiberglass | 2.0 | 0.23 ~ 0.5 | 45 |
|---|
| SC1000FG | White | Fiberglass | 3.5 | 0.25 ~ 0.5 | 90 |
|---|
| SC2000FG | White | Fiberglass | 5.0 | 0.25 ~ 0.5 | 90 |
|---|
| SC800-PI-2-K4 | Gray | Polyimide | 0.9 | 0.15±0.02 | 90±5 |
|---|
| SC800-PI-2-K6 | Gray | Polyimide | 1.1 | 0.15±0.02 | 90±5 |
|---|
| SC800-PI-2-K10 | Gray | Polyimide | 1.3 | 0.15±0.02 | 90±5 |
|---|
| Test Method | Visual | - | ASTM D5470 | ASTM D374 | ASTM D2240 |
|---|

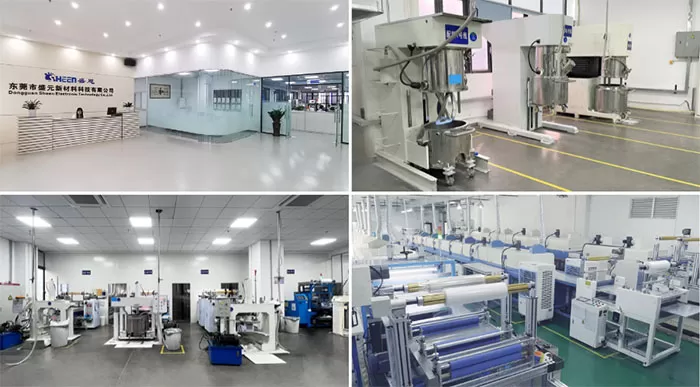

About Us
Dongguan Sheen Electronic Technology Co., Ltd.◆
Founded: 2008
◆
Team: 110 employees
◆
Facility: 5,000㎡
◆
Focus: R&D and production of functional materials
◆
Strengths: Efficient, collaborative team
◆
Achievements: Key supplier to leading global manufacturers
◆
Applications: Telecom, Automotive, Medical, Computing, Industrial , Military
◆
Certifications: ISO9001:2015, ISO14001:2015, IATF16949:2016
Partners

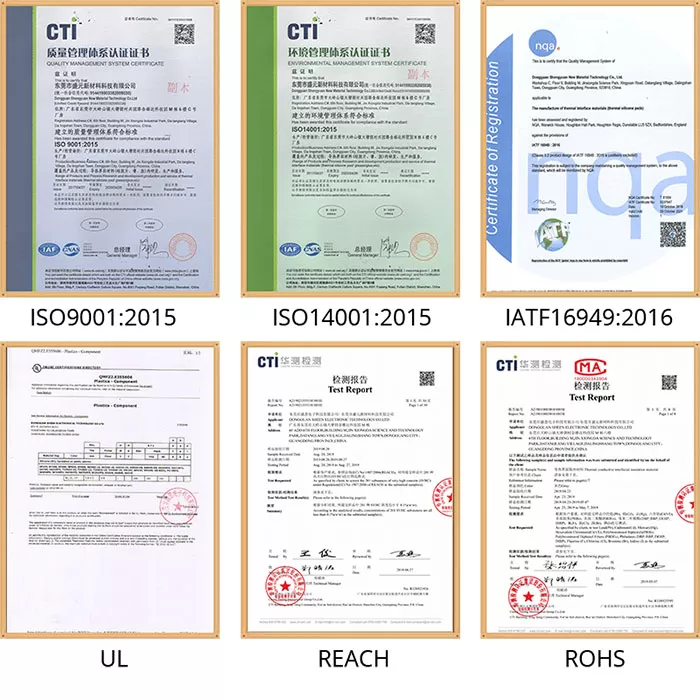

Certifications
