Introduction:SA700 Series Silicone Foam are renowned for their distinctive characteristics
Use Range:

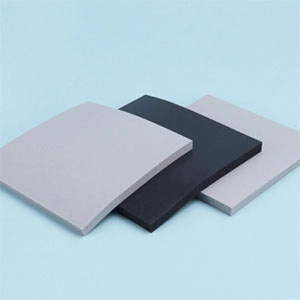

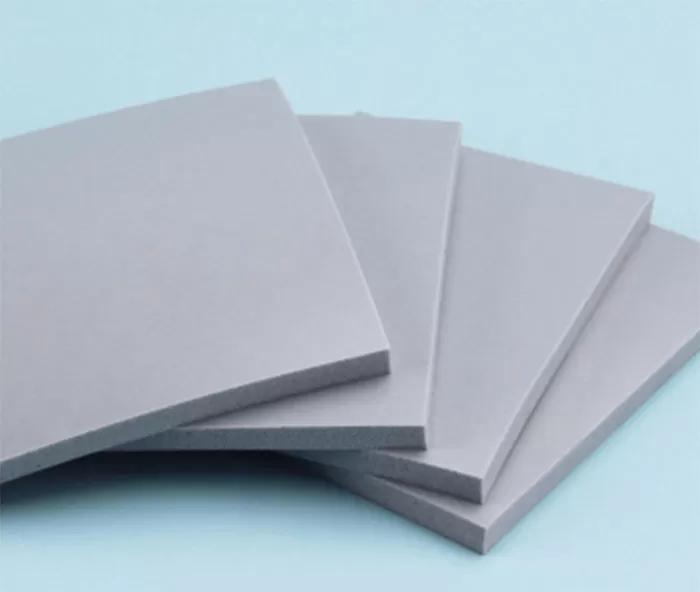

SA700 Series Silicone Foam (Closed Cell Silicone Sponge Sheet), made from liquid silicone cured under heat, offers high compressibility and superior resilience. Its eco-friendly properties and UL94 V-0, HF-1 flame retardant rating make it an ideal choice for various applications, including battery pack liquid cooling support, lighting equipment sealing, and electrical control cabinet protection.
| Properties | SA700-200 | SA700-260 | SA700-300 | SA700-350 | SA700-400 | Test Method |
|---|---|---|---|---|---|---|
| Color | White, Gray, Black | Gray, Black | Gray, Black, Red | Gray, Black | Gray, Black | Visual |
| Density (kg/m3) | 200 | 260 | 300 | 350 | 400 | ASTM D1056 |
| Thickness (mm) | 1.6~20.0 (±10%) | 1.2~20.0 (±10%) | 1.2~20.0 (±10%) | 0.6~20.0 (±10%) | 1.0~12.0 (±10%) | ASTM D374 |
| Compression Set (@50%, 100℃) | <5% | <5% | <5% | <5% | <5% | ASTM D1056 |
| Compression Force Deflection (kPa) | 7 | 10 | 30 | 50 | 80 | ASTM D1056 |
| Water Absorption | <5% | <5% | <5% | <5% | <5% | ASTM D1056 |
| Tensile Strength (kPa) | 100 | 120 | 200 | 280 | 350 | ASTM D412 |
| Elongation | 60 | 70 | 60 | 90 | 80 | ASTM D412 |
| Thermal Conductivity (W/m·K) | 0.05 | 0.05 | 0.05 | 0.071 | 0.064 | ASTM E1461 |
| Volume Resistivity (Ω·cm) | >1014 | >1014 | >1014 | >1013 | >1013 | ASTM D257 |
| Flame Rating | V-0，HF-1 | V-0，HF-1 | V-0，HF-1 | V-0，HF-1 | V-0，HF-1 | UL 94 |
| Operating Temp. (℃) | -55~200 | -55~200 | -55~200 | -55~200 | -55~200 | - |
