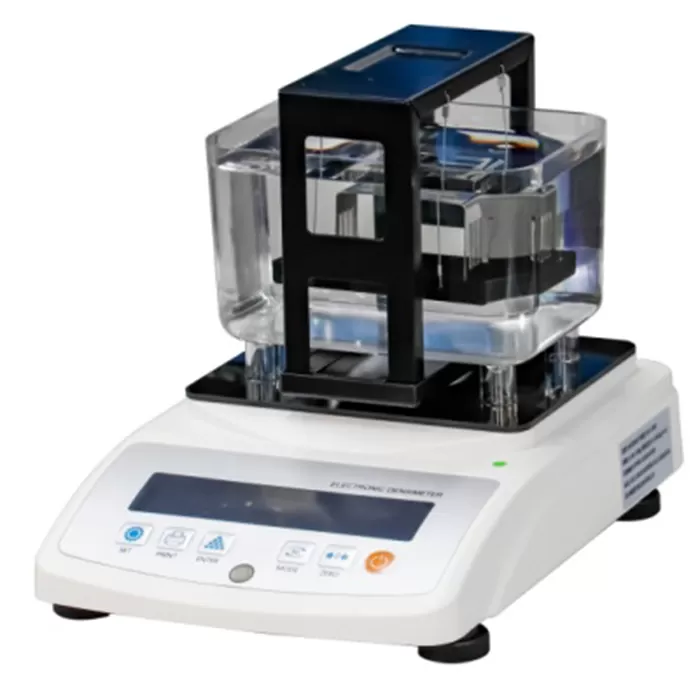

Introduction:Electronic Densitometer Solid QT-MDJ-300S
QT-MDJ-300S Electronic Densitometer Solid Suitable for: Rubber, Plastic, Cable, new materials research lab.
Principle: In accordance with ASTM D792, GB/T 1033, JIS-K-6268, ISO 2781 standards, and by adopting the buoyancy method of
Archimedean principle, the machine can accurately and directly show the density of sample.
1. Byadopting the design of big tank, it can decrease the inaccuracy caused by supporting wire’s buoyancy.
2. It has the RS-232 interface, can be connected to PC and printer easily
Model | MDJ-300S |
Measuring range | 0.001g - 300g |
Testing Sorts | solid, pellet, film, floating |
Testing time | About 5 seconds |
Density Range | >1, <1both can be tested |
DensityPrecision | 0.001 g/cm3 |
Setting | Compensation of water temperature and solution |
Functions | Can directly show density and volume |
Standard Interface | RS-232 |

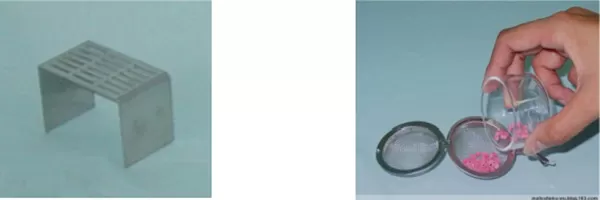

Standardaccessories
A:Steel-angle B:Special measuring toolfor particles
1. Read directly the density and volume of any shape >, 1, or less than 1 of solid blocks, particles, or floats.
2. With the function of temperature compensation setting and solution compensation setting, the operation is more humanized and more in line with the field operation requirements.
3. Density measurement platform integrated injection molding, convenient and fast installation, longer use time.
4. Adopting the design of a large anti-corrosion flume, it can reduce the error caused by the buoyancy of the bar line, and it is also convenient to test larger block objects.
5. With upper and lower density functions, it can determine whether the specific gravity of the object to be measured is qualified or not. A buzzer is provided.
6. With rs-232c computer interface, it can easily connect PC and printer.
7. Built-in battery, equipped with wind shield, more suitable for field testing.
8. Select liquid accessories, you can test the density and concentration of the liquid.
