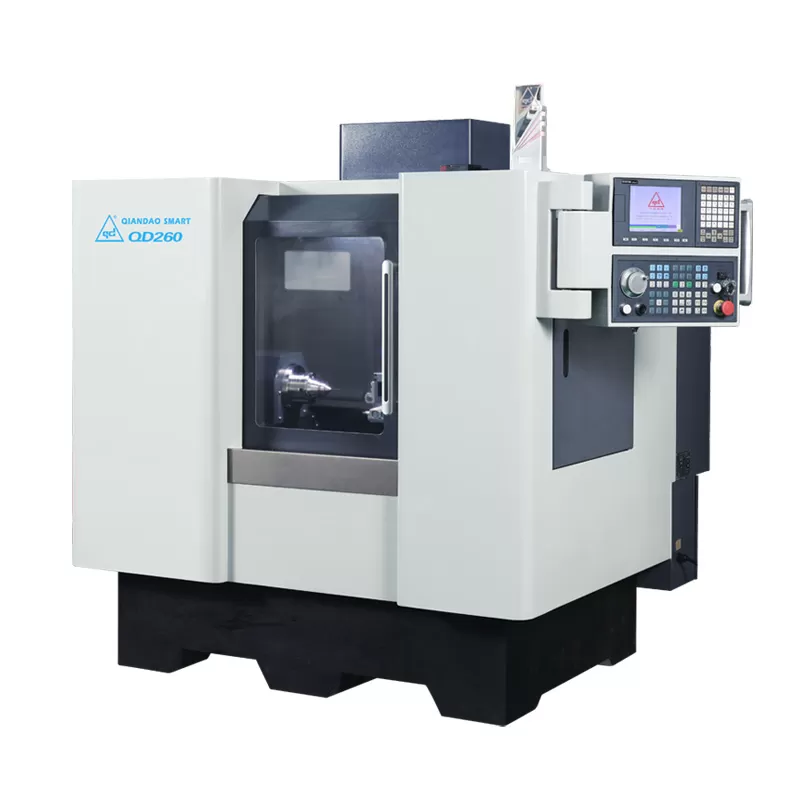

QD260 CNC Step Grinding Machine

QD260 is suitable for grinding the outer circle and conical surface of round rod workpieces It is especially suitable for the grinding of the outer circle and the excessive tapered surface of the tool manufacturing blank by the tool manufacturer and the part manufacturer

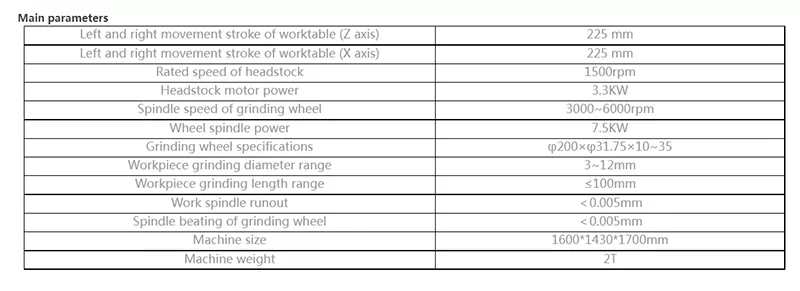

Processing diameter：3-12mm
Grinding length：<=100mm
Machine weight：2T
Machine weight：1600x1430x1700mm

QD260 CNC Step Grinding Machine numerical control level difference external cylindrical grinder is suitable for grinding the cylindrical and conical surfaces of round rod workpieces. It is especially suitable for the grinding of the outer circle and the excessive tapered surface of the blank of the tool manufacturing by the tool manufacturer and the part manufacturer.

   1. The machine tool is designed with a human-machine dialogue interface, variable programming, simple operation, convenient and fast.
   2. Automatic loading and unloading of workpieces, probe detection and positioning, quick realization of parts loading and unloading functions, realizing one person to supervise multiple machines or realize unmanned operation through system management
   3. The machine tool guide rail adopts precision roller guide pair, which has high rigidity and large load, and adopts high-rigidity precision ball screw pair transmission.
   4. The electric cabinet is equipped with an air conditioning cooling system, and the electrical components work at a constant temperature to improve the stability, life and reliability of all components.
   5. The machine tool is fully sealed and protected, with sliding doors in the front and maintenance doors on both sides and rear, making it easy to install and maintain.
   6. It is equipped with mist suction device and fire extinguishing device, which is environmentally friendly and safe.
