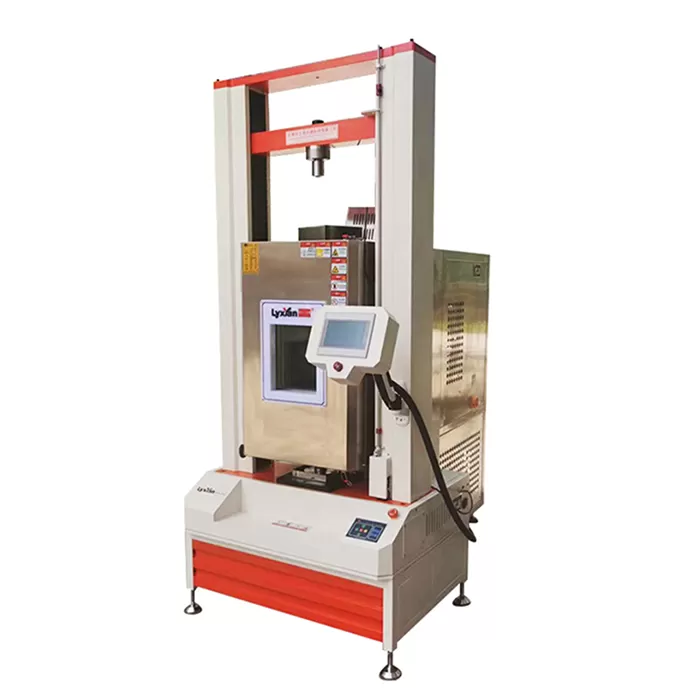

Introduction:10N - 10KN High and Low Temperature Tensile Testing Device HZ-1003C
High and Low Temperature Tensile Testing Device HZ-1003C mainly applied to test the force of metallic and non-metallic materials in the high temperature environment, the force such as tension, compression, bending, shear, peel, tear or two-points extensions (need to add extensometer) and others., the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire .
| Model | HZ-1003C |
| Load cell | 1kN, 2kN, 5kN, 10kN |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range | 0.2%～100% (1grade) / 0.4%～100% (0.5 grade) |
| Measuring accuracy | Tolerance ±1% / tolerance ±0.5% |
| Tester resolution | 1/200000 |
| Effective testing width | 380mm |
| Effective tensile stroke | 1000mm |
| Range of testing speed | 0.001～500mm/min |
| Accuracy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
| Overload protection | Overload 10%, automatic protection |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Temperature range | Normal temperature～200°C |
| Inside space | 300*350*500mm |
| Cooling system | Compression from France |
| Power supply | 220V, 50HZ |
| Units | Kg, N, LB, TON can be exchanged. |
