180 Degree Peeling Test Machine

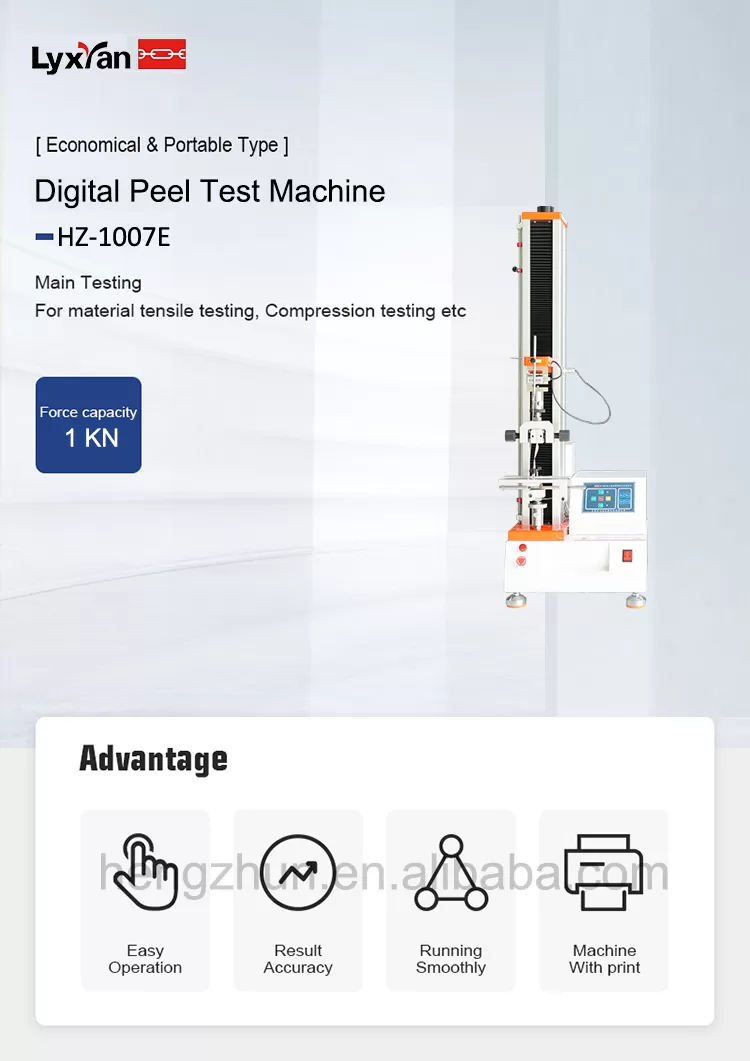

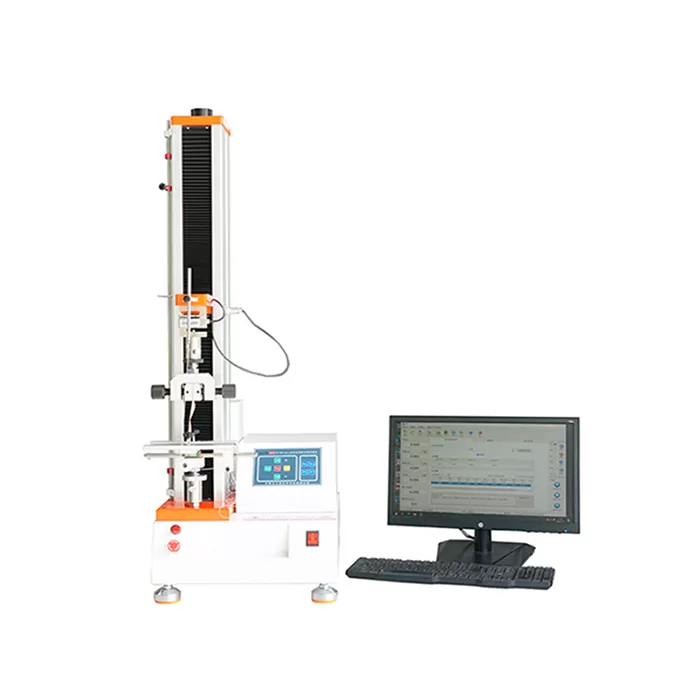

Introduction:180 Degree Peeling Test Machine HZ-1007E

Main function:
Peeling Test Machine HZ-1007E can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.

Main features:

1. Adopt: Panasonic servo motor, the beam moves up and down to test the load through the transmission.
2. The whole control system is safe and high reliability.
3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation,testing speed and testing curves.
4. Microcomputer for data processing and analysis, testing results can be saved automatically, testing curves can be transferred out after the test, you can know the testing process through the testing curves, or compare with others curves, or amplify the curves.
5. The testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete testing report and testing curves.
6. Has limit protection, overload protection, emergency stop and other safe protective functions.

Applicable industry:

Including but not only -
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC-7...

Technical parameters:

Model	HZ-1007E Peeling test machine
Maximum load	50N, 100N, 200N, 500N, 1KN, 2KN (optional )
Accurate grade	1 grade / 0.5 grade
Effective measuring range	Force from 0.2% to 100% / from 0.4% to 100%
Measuring accuracy	the value ±1% / the value ±0.5%
Tester resolution	Max load: 1/200000, constant the resolution
Load sensor	Basic configuration sensor max load: one
Effective tensile stoke	500mm (accept customize)
Testing speed	From 0.001 to 500mm/min
Accuracy of displacement measurement	Tolerance: ±0.5% / tolerance: ±0.2%
Safety	Electronic-limit protection
Testing platform moving device	Fast /slow (two speeds to control), can jog
Overload protection	Overload 10%, automatic protection
Fixture	A set of 90/180 degree peeling test clamp
Machine size	35x40x100cm (LWH)
Motor	Taiwan Delta
Power supply	220V , 50HZ or according to the requirement
Power	0.4KW ( depending on the motor)
Weight	About 70KG
Unit	KG, N, LB, TON can be exchanged.
