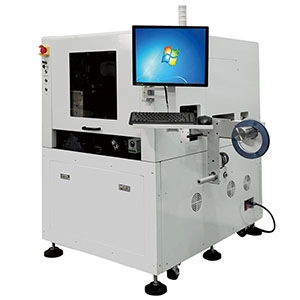

The stick machine

Introduction:

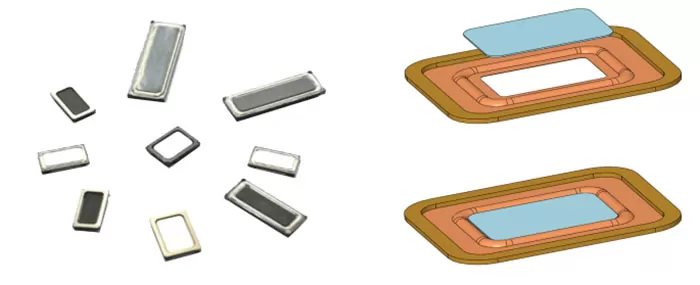

     Suitable for sound film ball top, gum, foam, conductive cloth, mylar, bar code and other high-precision auxiliary materials fitting, to achieve high-speed, high-quality, high-precision production, single/online can be freely combined.

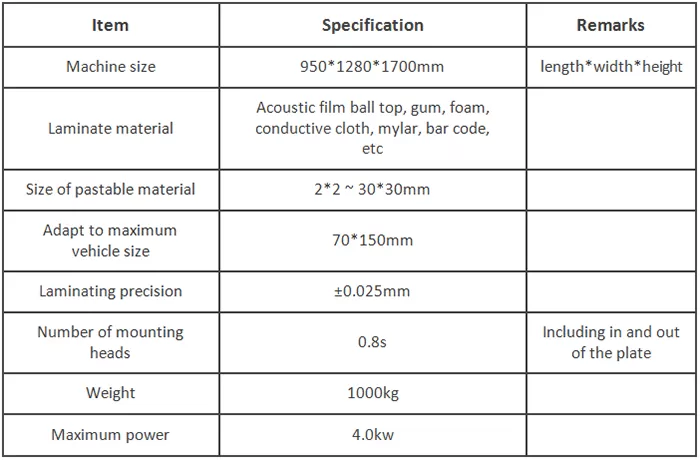

Parameter:

Advantage:

• High accuracy: fitting accuracy up to +0.025mm;

  High efficiency: 0.8s/ PCS;

  Diversity: multi-function feeding feida, can stick 2* 2~ 30* 30mm material, material belt width applicable range ≤130mm;

  Convenience: quick-disassembly vacuum nozzle structure, only need to replace the nozzle when switching products, saving redundant debugging time;

  Strong flexibility: double track feeding mode, mount fixture can be reflow, single/online can be freely combined;

  Reading code: the vision system supports reading of one-dimensional code and two-dimensional code, and realizes online production by docking with MES system.

Solution:

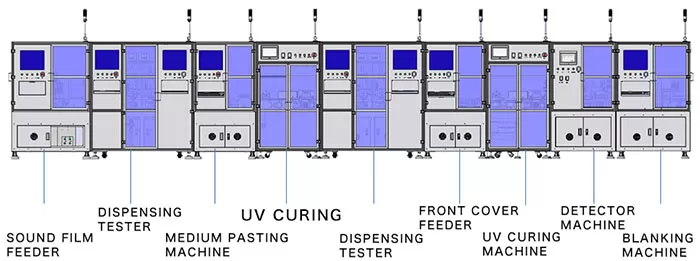

      According to the process of customer products, multiple models can be adjusted and matched with string production, to achieve dispensing, laminating, testing, shaping, curing, automatic loading and unloading before and after the station connection, single/online can be freely combined.
