DSS100

Introduction:

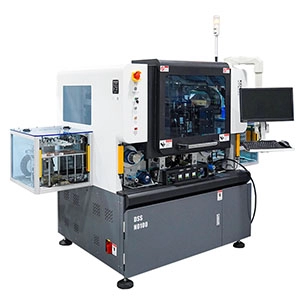

DSS100 reinforcement laminating machine, fully automatic with double Y structure design, match with linear motor, speed laminating, carrying visual positioning function at the same time, through the visual system to absorb the reinforcement piece of position and angular deviation correcting, realize the online positioning and compensating, attached with a fast and accurately draw by reinforcing piece precision laminating the position specified in the product. This equipment is suitable for FPC steel sheet, PI, FR4 and other reinforcing materials laminate, for printed circuit industry, electronic precision, adhesive products factory efficiently solve the problem of attaching manpower consumption, attaching imprecision, slow speed and so on.

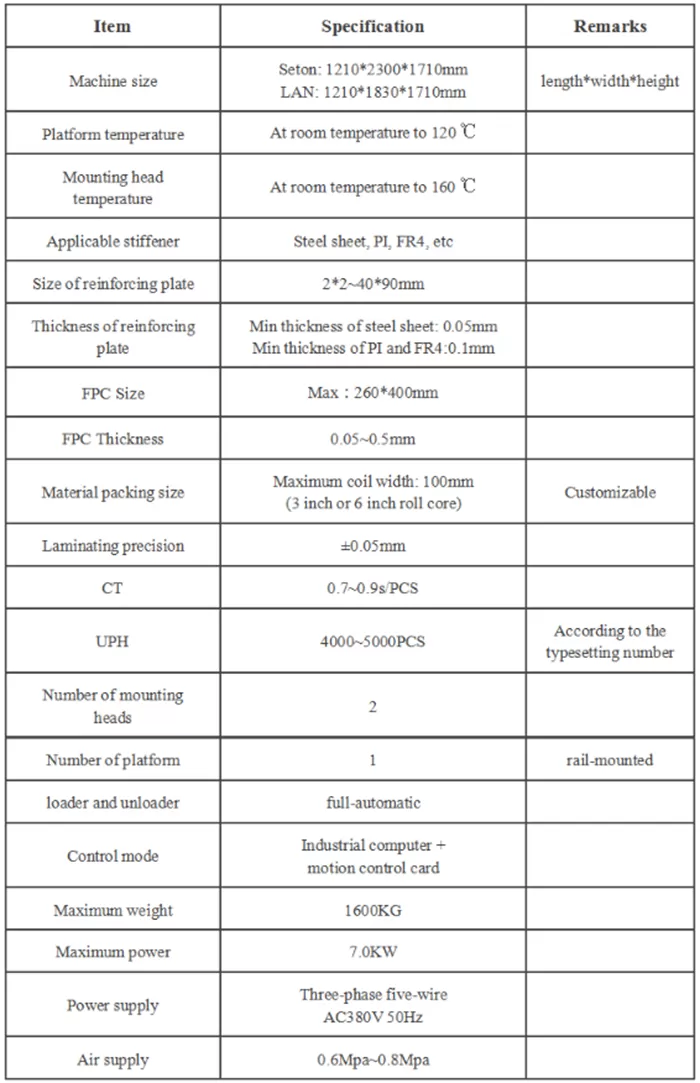

Parameter:

Advantage:

1. High efficiency, high precision, Y axis adopts 2 groups of linear motors each equipped with 1 group of mounting head, staggered action;

2. Anti-repaste, anti-leak paste technology, effectively improve the yield of production, reduce scrap;

3. Automatic identification of bad board function, intelligent skip bad points;

4. Equipped with MES function, can do data upload according to customer MES documents;

5. CCD material can be accurately positioned, and adapt to the minimum 2*2mm auxiliary materials;

6. Built-in laminating platform + automatic loading and unloading, can be single machine production, also can be multiple machines online production.

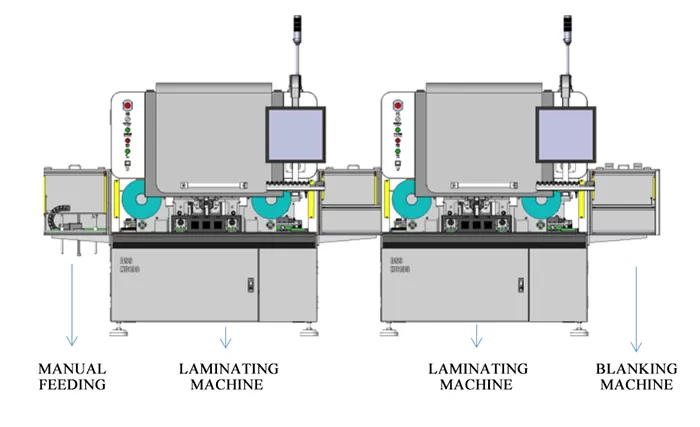

Solution:
