Gravity die casting machines

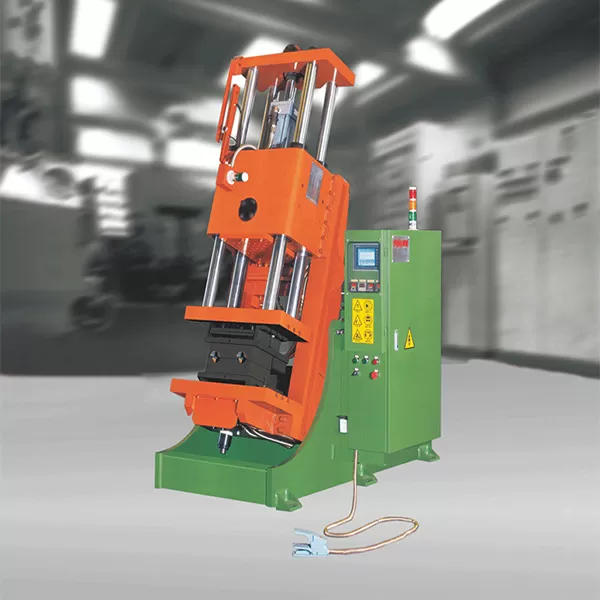

Introduction:Gravity die casting machines PN2B650-65

Description：

Technical Parameters:

1. Controlled by a PLC control unit. (Mitsubishi)

2. Running: Hydraulic transmission & water cooling system (A hydraulic master cylinder system can control three casting machine)

3 .Casting function: tilting moving casting, fixed tilting casting, horizontal casting

4. Casting speed & angle are adjustable. Size angle: 0-75℃

5. The time of cooling is adjustable

6. The size of die holder of fixed mold: 650*300*70mm

7. Max weight of mold: 200kg

8. Having safety footboard (the set to protect the operator)

9. Pump power: 7.5KW

10. Maximum of opening stroke distance: 400mm

11. Fixed plate spacing on both sides of the mold: 550mm

12. The pressure of engaging mold: 4200kg

13. Fuel tank capacity：250L

14. The pressure of working oil：40-50kg/cm²

15. Solid time is adjustable

16. The time of casting can be shown

17. The level of pouring package can be controlled

18. If the die temperature exceeds the limits, the mold cannot be engaged

19. The net weight of machine: 2500kg

20. Machine dimension: 2500mm*1500mm*1700mm
