Servo control Universal Testing Machine

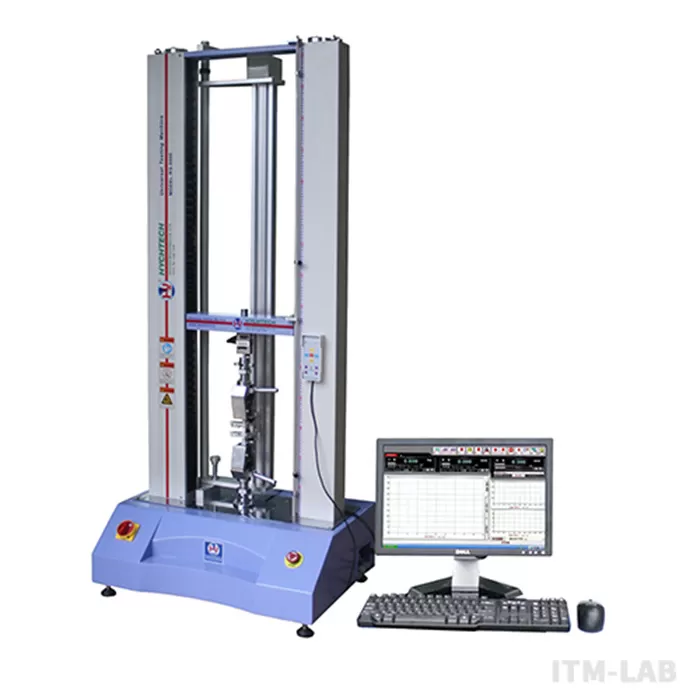

Introduction:Servo control Universal Testing Machine RS-8000

Overview：

Model:RS-8000

This UTM are suitable for the testing of tensile, compression, shearing force, adhesion, peeling force, tear strength, fatigue etc for semi-product & finished product in the field of rubber, plastic, metal, nylon, non-woven fabrics, textile, tape, polyfoam, waterproof material, electric wire, electric cable, etc., which are the basic facilities for input quality control(I.Q.C), Quality Control(Q.C.), Physical inspection, Mechanics research and material development.

Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle.

Can record and memorize the whole testing data.

Specification：

Model	RS-8000
Capacity (optional)	100N, 200N, 500N, 1, 2, 5, 10, 20, 30, 50KN
Unit (switchable)	N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2
Power system	Japan Panasonic serve motor
	Italy Motovaria gearbox
	Japan Mitsubishi synchronous belts
	Taiwan ABBA ball screw
Load resolution	1/500,000
Load accuracy	±0.25%
Load range	rangless
Stroke (exclude the grips)	800mm,1000mm (optional)
Effective width	400mm, 500mm (optional)
Test speed	0.001~500mm/min
Speed accuracy	±0.5%
Stroke resolution	0.001mm
Software	Profession software
Motor	AC servo Motor
Main unit dimension	W830xD670xH1940mm
Main unit weight	345Kg
Power supply	AC220V 5A or specified by user
