Introduction:Key load durability testing machine RS-8330B2W
Products Show：

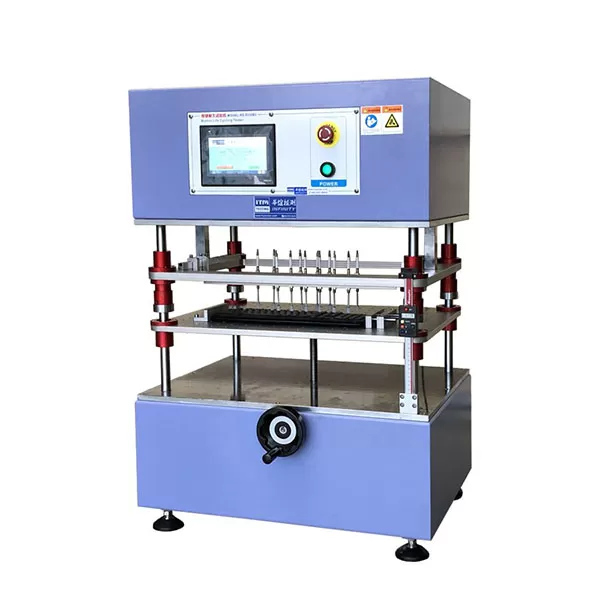

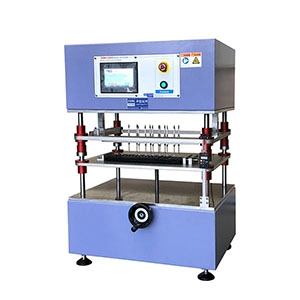

Key load durability testing machine RS-8330B2W Adopt 7 Inch OMRON TTT (OMRON) Color Touch Screen + Mitsubishi PLC Control, Chinese and English Control Interface, Two Test Modes: Continuous Test Mode---- Fast Continuous Test Mode; The intermittent test mode ---- meet the requirements of the button hold time test, and the button hold time can be set to 0.1-99.99 seconds and the rise hold time (push head leaves the button). The test time can be set between 0 and 99999999, and when the set time is reached, the memory function and auto shutdown are used to power off. Testing speed: 60-360 times/min in continuous test mode, 5-100 times/min in intermittent test mode.
Product Application：

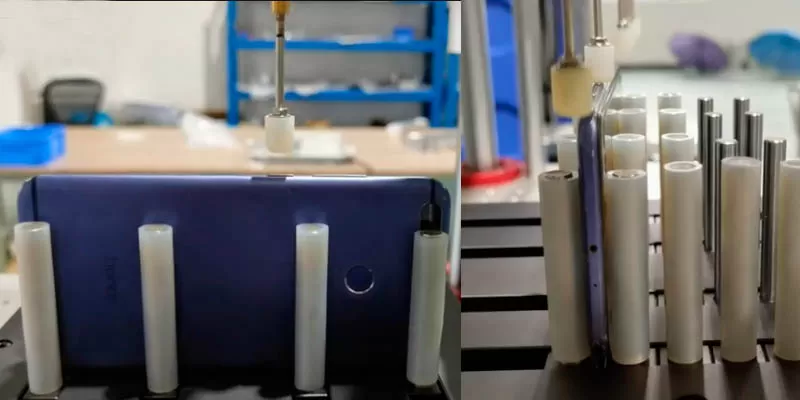

This machine is applied to Computer Keyboard, Notebook Keyboard, Mobile Phones, Calculators, E-Readers, Electronic Dictionary, Game Pens, Remote Controls, etc
Technical Parameters：
| Probe installation range | 350x250mm | 600x400mm |
| Press down holding time | 0.1~99.99 seconds (adjustable) | |
| Ascent dwell time | 0.1~99.99 seconds (adjustable) | |
| Cycle times setting | 0~99999999 times (adjustable) | |
| Test speed | Continuous test mode 60~360 times/min can be set | |
| Intermittent test mode 5~100 times/min can be set | ||
| Test Mode | Continuous test mode, intermittent test mode | |
| Accessories | 15 load adjustment probes (optional), 5 probe fixing rods (optional), load calibration table (standard), electronic scale (2000gf) standard, large clamping fixture | |
| Host working environment | ≤50℃, 95%RH can run for a long time | |
| Host size | W600 x D400 x H1000mm | W850x D600 x H1050mm |
| weight | 105kg | 190kg |
Manufacture Ability：
