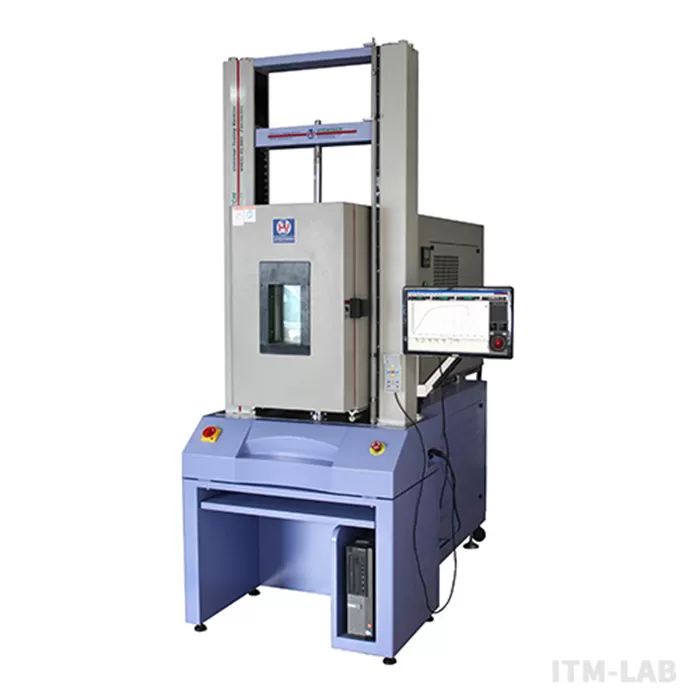

High Low Temperature Universal Testing Machine

Introduction:High Low Temperature Universal Testing Machine RS-8000GDW

Overview:

Model:RS-8000GDW

Apply for tensile, compress, bending, peel, tearing, peeling, bursting, fatigue test on metal rod, metal plate, rubber, PU, leather, plastic, foam, sponge, water-proof material, cable, wire, fabric, nettle, non-woven, etc.

Test standard:

GB/T4338-1995 ISO783:1989 metal high tempertature tensile test
GB/T13239-2006 ISO15579:2000 metal low temperature tensile test
GB/T228-2002 ISO6892:1998 metal room temperature tensile test

Specification:

Model	RS-8000GW	RS-8000DW		RS-8000CDW	RS-8000GDW	RS-8000CGDW
Capacity	500N, 1KN, 2KN, 5KN, 10KN, 20KN, 50KN can option
Resolution	1/500.000
Load accuracy	±0.25%F.S
Test speed range	0.001-500mm/min or 1-1000mm/min
Temperature range	Room Temperature~250℃	Room Temperature~-40℃		Room Temperature~-70℃	-40℃~150℃	-70~200℃
Inner chamber dimension	W300xD350xH600mm
Temperature control accuracy	±2℃
Coolants	Low temperature chamber, environmental coolants
Chamber material	Inner side will be SUS304# mirror, the outside will be cold steel plate with painting
Temperature control mode	P.I.D self-adjusting mode and SSR control
Temperature controller	Button input, LED digital display output
View window	Double layer view window(180x220mm)
Dimension WxDxH	950x800x2400mm		1100x2000x2400mm
weight	295kg		350kg
Power	AC220V 12A		1§AC220V 30A or specified by user

application：

Typical applications	Metal high temperature tensile test
	Metal low temperature tensile test
	Rubber high & low temperature tensile test
	Other material high & low temperature tensile test

Features：

High-precision

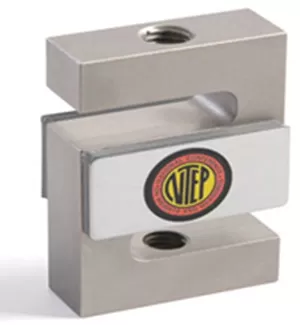

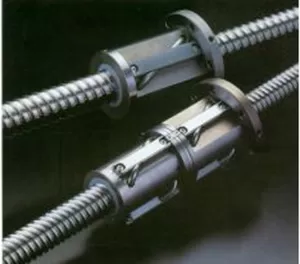

Use Panasonic AC servo motor to drive, and ABBA high precision ball screw for transmission, with high precision explosion proof LOADCELL from U.S. TRANSCELL, the force accuracy can be ±0.25%, the displacement accuracy is up to 0.001mm.

High intelligence

Automatically determine the fracture,automatic return, the force units are free to switch languages switchable:Simplified/Traditional Chinese, English. Load-displacement, load-time, displacement-time stress-strain, strain-time, stress-time multi-curve analysis.

Test report

Statements developing is based the Crystal Reports 10.0 version, can automatically calculate the strength,elastic modulus ERP0.2 Rel, Reh, elongation, content can be freely altered, curve automatically generated, can be exported to Excel, PDF, HTML and other formats.
