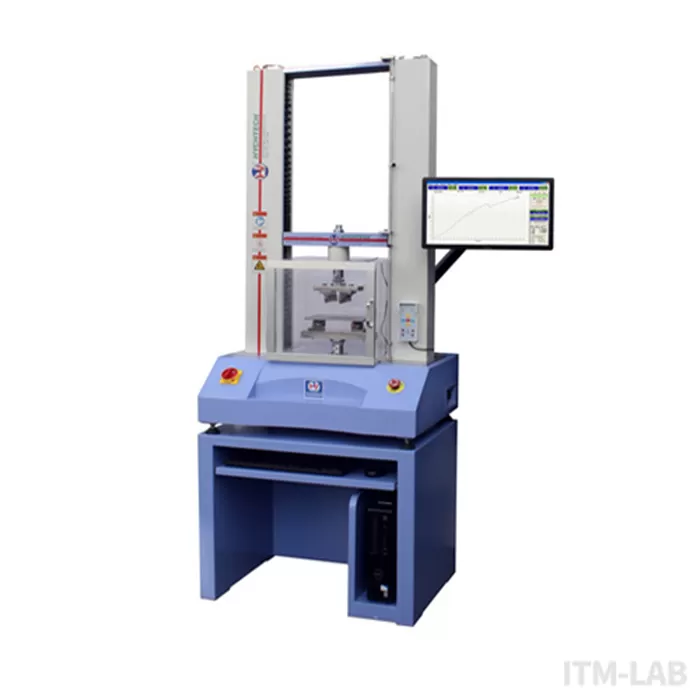

Glass Compression Testing Machine

Introduction:Glass Compression Testing Machine RS-8000SA

Overview:

Model:RS-8000SA

The machine is suitable for 3,4-points bending test of tempered glass,and also tensile,compression, Flexural, peel, shear, tear, bursting, fatigue tests for wire ,metal foil, sheet metal and metal tape, rubber, plastic, air/sea foam, waterproof materials, wire and cable, textile fabrics, net rope, non-woven material by equipped with the different fixtures.

Specification:

Model	RS-8000SA-Glass
Capacity	10KN(1000kgf)
Unit(switchable)	N, KN, Kgf, Lbf
Load resolution	1/200,000
Load accuracy	±0.5%F.S
Effective Load range	0.25%~100%F.S
Stroke(exclude the grips)	600mm
Effective width	400mm
Test speed	0.001~500mm/min
Over-load protection	Auto step into protection when the load is 10% higher than the max capacity of loadcell
Main unit dimension(WxDxH)	800x600x1972mm
Main unit weight	235kg
Power supply	AC220V 10A or specified by user

Application：

Typical applications	Glass3-points bending test
	Glass4-points bending test
	Glass compressive strength test
	Metal/sheet tensile test
	Rubber/plastic bending test
	Tape 900/1800 peel strength test
	FPC pull test
	Beverage packaging compression /bursting force test
	The product holding force (Constant) Test
	Low cycle fatigue(loop)test
	Metal timber three-point bending test
	Environmental plywood adhesive force test
	The composite woven packaging with strength test
Basic Applications	Glass, metal, ceramic, composite, tape, Food and medical equipment, paper, plastic, rubber, communication.

Features：

High-precision

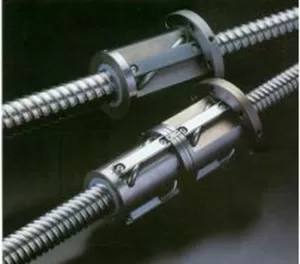

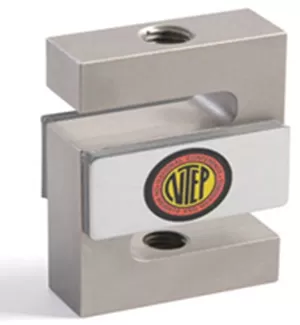

Use Panasonic AC servo motor to drive, and ABBA high precision ball screw for transmission, with high precision explosion proof LOADCELL from U.S. TRANSCELL, the force accuracy can be ±0.25%, the displacement accuracy is up to 0.001mm.

High intelligence

Automatically determine the fracture,automatic return, the force units are free to switch languages switchable:Simplified/Traditional Chinese, English. Load-displacement, load-time, displacement-time stress-strain, strain-time, stress-time multi-curve analysis.

Test report

Statements developing is based the Crystal Reports 10.0 version, can automatically calculate the strength,elastic modulus ERP0.2 Rel, Reh, elongation, content can be freely altered, curve automatically generated, can be exported to Excel, PDF, HTML and other formats.
