fully automatic plug-in force testing machine

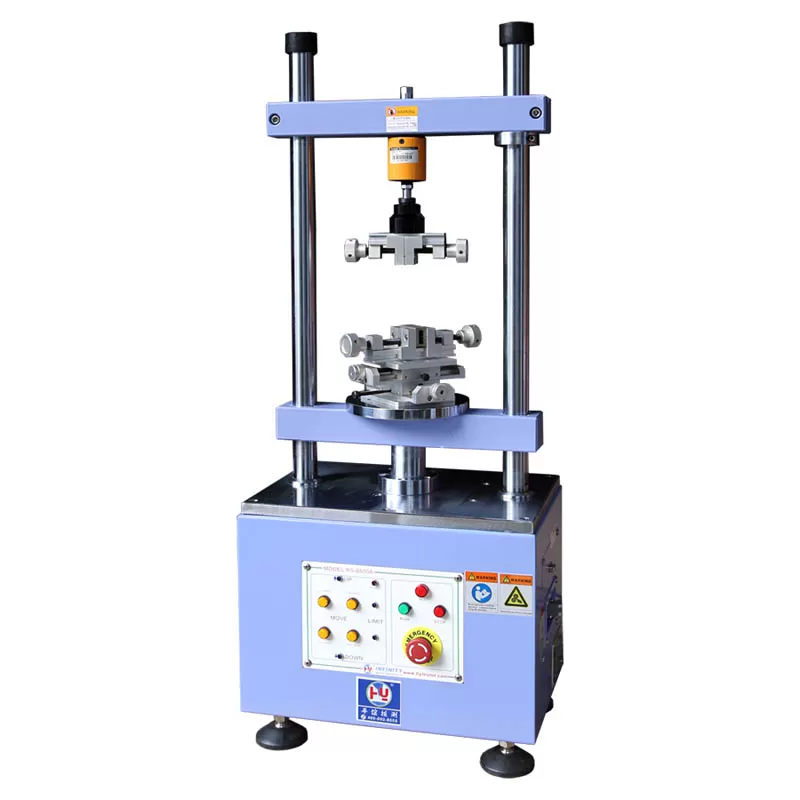

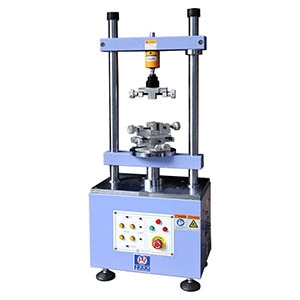

Introduction:Servo controlled fully automatic plug-in force testing machine RS-6600A

Products Show：

This instrument is designed to perform insertion and extraction force tests Fully automatic control of the RS-6600A servo drive, various connectors. Equipped with an automatic centering device and special latches for various connectors, it provides fully accurate insertion and removal results.
Delivery Terms: EXW, FOB, CIF
Min. Order: 1 Set
Supply Ability: 500 Sets/Month
Completion time: 30 days

Technical Parameters：

model	RS-6600A
Capacity selection	5kgf,10kgf,20kgf,50kgf,100kgf
Unit Switching	kgf, N, Lb, gf
Load accuracy	±0.2%
Minimum display	0.01kgf or 0.01gf
Test trip	0~150mm
Minimum displacement display	0.001mm
Effective width	290mm
Test speed	0~ 5 00mm/min
Speed accuracy	±0.5%
motor	Japan Panasonic servo motor
Host size	460x270x950mm
Machine weight	70kg
power supply	AC220 5A or specified
Emergency stop response time	100ms

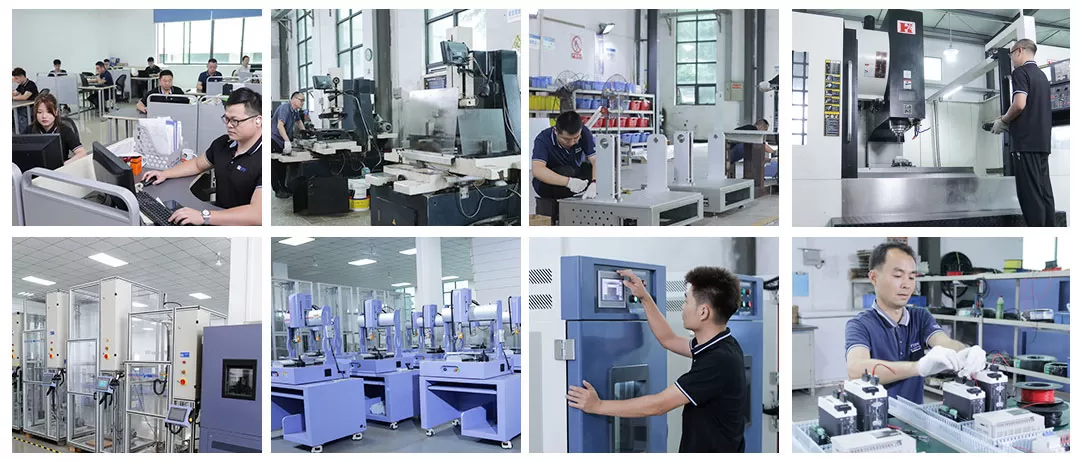

Manufacture Ability：
