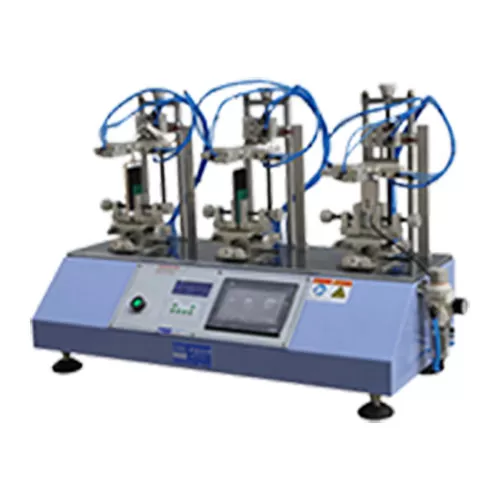

Connector Side Force Tester

Introduction:Connector Side Force Tester RS-8645A-3

Products Show:

The Connector Side Force Tester is designed for USB holders, headphone holders, charger plugs to do the front, back, left and right lateral force test of the cell phones, pad，PC, electronic dictionaries and other portable mobile devices.

Description:

Model	RS-8645A-3
Stations	3pcs (each group independently controlled and tested)
Test direction	front, rear, left and right
force	500g~2kgf (or specify)
Test stroke	20mm
Action delay	Delay time 0.1~99.9sec
Number of tests	1~999999 times (can be set)
Sample size	Standard configuration for 4~7″ cell phone or pad (negotiable)
Machine Size	W1000 x D460 x H750mm
Weight	95kg
Air source	≥0.7MPa pure gas source after three-stage filtration
Power source	AC220V 50H 5A
