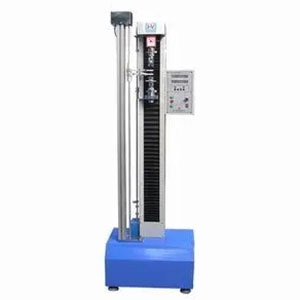

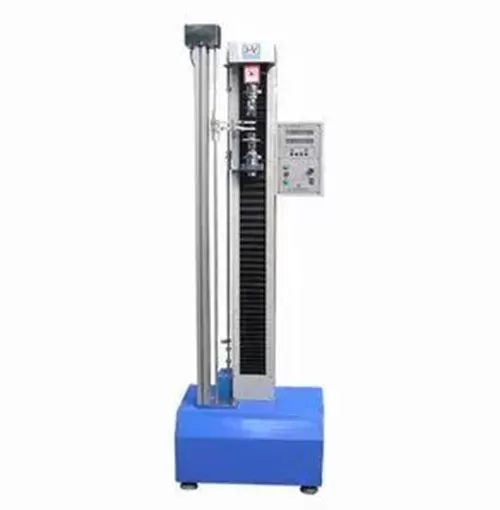

Introduction:Computerized Tensile Testing Machine RS-8003
Computerized Tensile Testing Machine RS-8003 is widely used in the mechanical property test of non-metallic materials such as rubber, plastics, wires and cables, textiles, waterproof materials, non-woven fabrics, as well as metal wires, metal foils, and metal plates, and it is also suitable for the tensile, compression, peeling, shearing, tearing, and bending tests of all kinds of finished products when combined with the special fixtures.
Description：
| Capacity Selection | 50N,10ON,200N,500N,1,2,5kN |
| Unit switching | N,KN,kgf,Lbf |
| Load decomposition | 1/25,000 |
| Load accuracy | 1% of the total weight |
| Maximum stroke | 1000mm |
| Effective width | 130mm |
| Test speed | 2~200mm/min or 25~500mm/min (to be specified) |
| Speed accuracy | ±1% of |
| Displacement resolution | 0.01mm |
| Motor | AC variable speed motor |
| Transmission lever | High precision ball bar |
| Display | Can display the marking point and fixture elongation, test value, maximum value; can display the displacement, with a pull-off stop, overload protection function |
| Main machine size (W*D*H) | 490*380*1860mm |
| Machine weight | 90kg |
| Power supply | AC220 5A or specified |
Features：
1.Adopted AC inverter motor drive, ball screw transmission, stable operation, low noise;
2.Digital display of force value, maximum force value, displacement, extension displacement, and test speed is stepless adjustable;
3.Adopting high precision encoder to measure displacement, the force defense rate is as high as 1/25000, high test precision, wide measurement range, convenient operation and low price;
4.With automatic stopping, over-current, over-pressure and over-load protection function;
5.Optional micro-printer can print the test data immediately.
