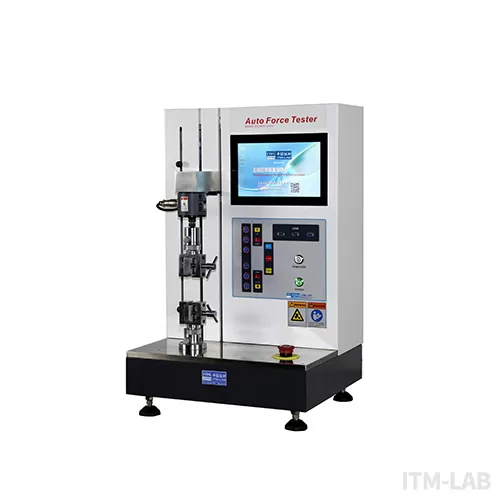

Auto Force Tester

Introduction:Auto Force Tester RS-6001P

overview：

Model:RS-6001P

Intelligent integrated design

10.2"touch control computer based on windows 10 system is equipped with Intel i7 CPU, which has extraordinary calculation and processing ability, supports the sampling frequency up to 1000HZ, and the test data curve can be automatically saved.

Desktop design

can greatly save laboratory space, small body, big strength, maximum support 5KN testing.

High rigid body design

The diplacement resolution is 0.001mm and the accuracy is within ± 0.02+0.0011mm（L= any length mm）. The accuracy of force value is better than ±0.25%.

Optimize key parts

The machine adopts Japan Panasonic servo motor + SHIMPO planetary reducer + THK precision linear guide + THK ball screw are used to optimize key parts to ensure repeated positioning accuracy, high speed, low noise and durable use.

A variety of test modes

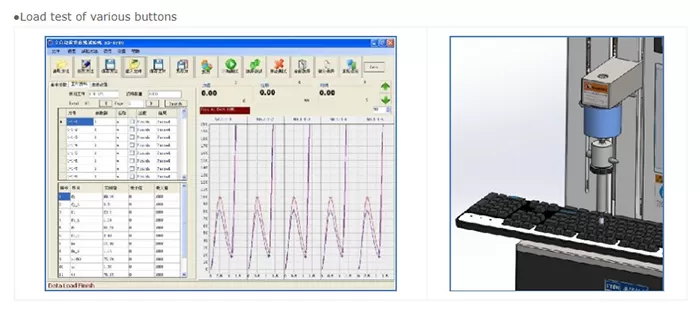

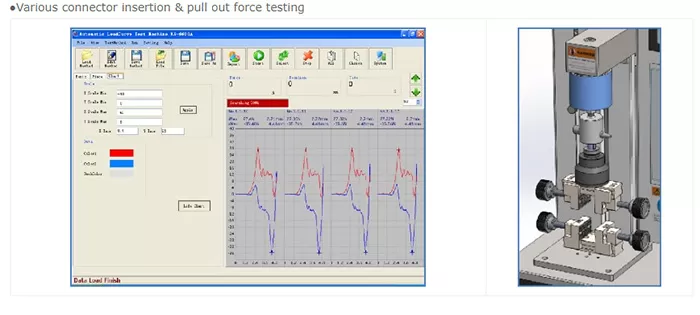

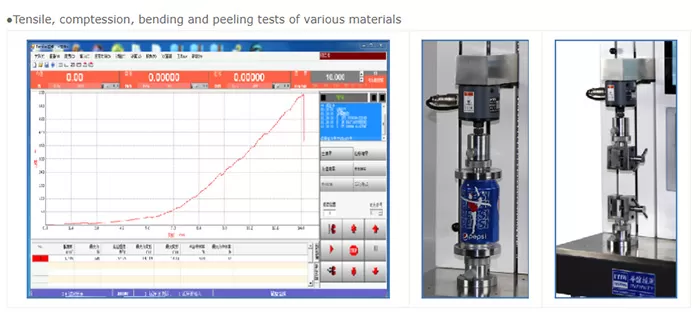

such as tensile, compression, bending, stripping and other test software packages, or connector insertion and pull-out force test software package, or key load test software package, specific consulting relevant business personnel.

With multi force channel function

the system adopts Japan NTS precision load cell, and can calibrate 5 sensors of different specifications, which is suitable for more test items.

Specification：

Max load of the machine	1KN, 2KN, 5KN (optional)
Max moving range	300mm or 500mm
Displacement resolution	0.001mm
Displacement accuracy	±0.02mm+0.0001L(L=any length mm)
Force accuracy	±0.25%
Test speed	0.001~1000mm/min
Speed accuracy	±0.5%F.S
Manual speed control	High speed: 500mm/min Low speed: 50mm/min Slow speed: 5mm/min
Unit selection	N, MN, KN, kgf, gf, Lbf, mm, cm, in
Acquisition frequency	1000 sec
Control computer	10.2" touch control computer, window 10 opertating system,Intel i7 CPU, 8g memory, 512g hard disk.
Protection function	Upper and lower mechanical travel limit protection, software force value overload holding, emergency stop button protection.
Size of machine	W460xD400xH730mm
Weight of machine	About 85kg
Power	AC 220V 50HZ 400W

Application：
