Introduction:Automatic Martindale Abrasion Tester ,Textile Testing Equipment LCD display HD-P306-8
Power: | Electronic | Interface: | LCD Display |
|---|---|---|---|
Maximum Stroke: | 24 ± 0.5mm, 60.5 ± 0.5mm | Sample Loading Pressure Hammer: | 2385±10g |
Dimension: | 600x650x320mm | Use: | Textile The Similar Fabric. |
High Light: | LCD Display Textile Testing Equipment | ||

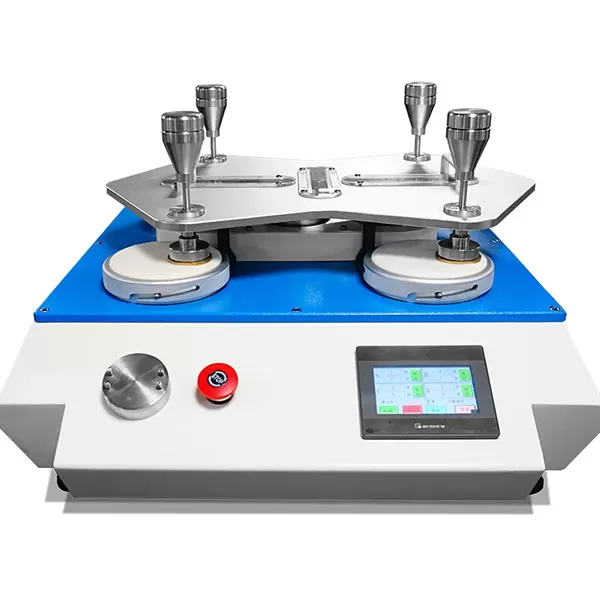

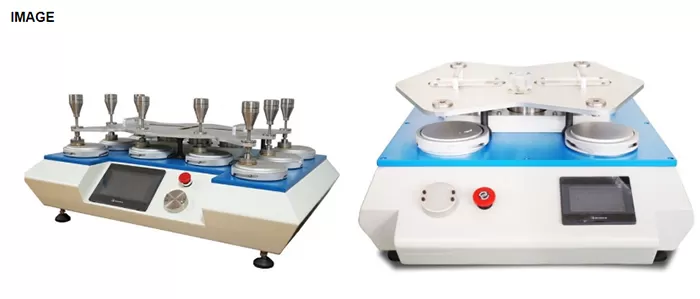

Martindale abrasion tester mainly applies to the pilling & abrasion resistance test of textile the similar fabric.
Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented
for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.
ASTM D4970, ISO12945-2 and other pilling degree test;
ASTM D4966, ISO12947 and other fabric abrasion tests.
| Technical Index | HD-P306-4 | HD-P306-6 | HD-P306-8 |
| Consumables | Baize 4,Testing Cotton 4 | Baize 6,Testing Cotton 6 | Baize 8 ,Testing Cotton 8 |
| Interface | LCD display | ||
| Count display | Projected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times | ||
| Maximum stroke | 24 ± 0.5mm, 60.5 ± 0.5mm | ||
| Loading : | a. Holder:200±1g | ||
| b. Dress material counter weight: 395±2g | |||
| c. Furnishings/Leather material counter weight: 594±2g | |||
| d. Stainless steel butterfly slice: 260±1g | |||
| Abrasion chunk effective rub diameter | A model: 200g(1.96N,9KPa) , abrasion head￠ 28.8 -0.084mm | ||
| Pace speed of the holder | 50-2r/min | ||
| Sample loading pressure hammer | 2385±10g | ||
| Diameter of abrasion fabric | 140mm | ||
| Diameter of Specimen | 38mm | ||
| Power | AC 220V/50Hz | ||
| Dimension | 600x650x320mm | 750x960x520mm | / |
